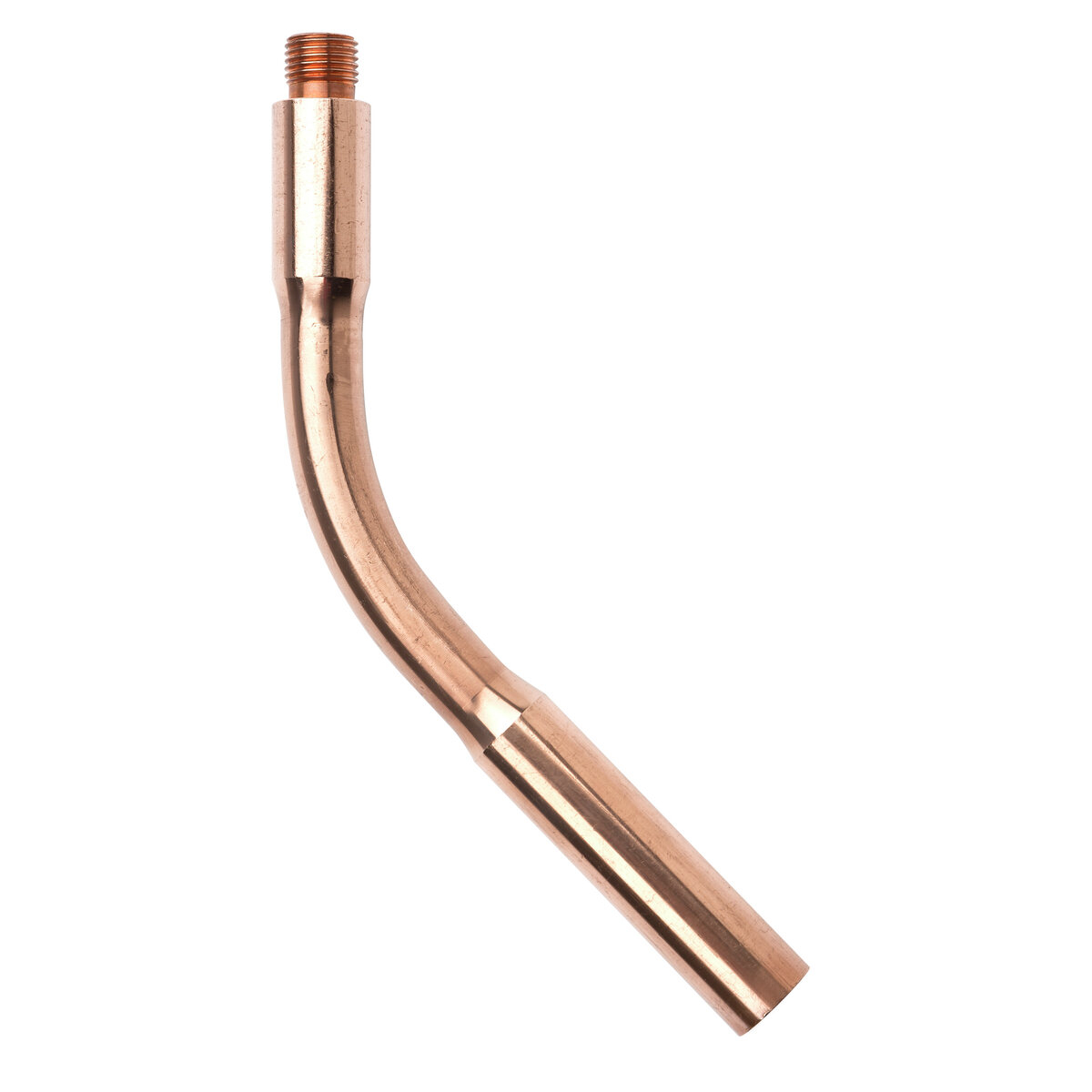

KP2721-2 - Lincoln K231 Torch 45-Degree Curved Nozzle Extension

Technical Overview of the Lincoln Electric KP2721-2

The Lincoln Electric KP2721-2 is a precision-engineered nozzle extension designed exclusively for the K231 Submerged Arc Torch system. In the demanding field of heavy industrial fabrication, the Submerged Arc Welding (SAW) process requires absolute precision in wire placement and flux coverage to ensure weld integrity. Standard straight nozzles often face limitations when encountering complex joint geometries, such as deep grooves, tight fillets, or obstructed structural angles. The KP2721-2 addresses these challenges with a specifically calibrated 45-degree curvature, extending the operational envelope of the K231 torch.

Manufactured from high-conductivity materials consistent with Lincoln Electric's OEM standards, this extension ensures efficient current transfer and consistent wire feeding characteristics, even through the bend. The internal geometry is smoothed to prevent wire shaving or feeding interruptions, which are critical factors in maintaining high-deposition rates typical of the SAW process. The extension attaches securely to the K231 gun body, maintaining the mechanical rigidity required to withstand the weight of the gun and the drag of the cable assembly during long weld runs.

By utilizing the KP2721-2, operators can maintain the optimal contact-tip-to-work distance (CTWD) in areas that would otherwise force a compromise in torch angle or stick-out. This capability is essential for maintaining arc stability and preventing defects such as porosity or lack of fusion in critical structural welds. The component is designed for durability, capable of resisting the intense radiant heat and abrasive nature of the granular flux environment inherent to submerged arc operations. It is an essential component for fabrication shops handling complex structural steel, shipbuilding components, or heavy pressure vessel manufacturing where joint accessibility varies.

Integration of this extension does not require modification to the standard K231 setup, allowing for quick changeovers between straight and curved configurations depending on the immediate requirements of the workpiece. This flexibility maximizes the utilization of the welding equipment and reduces downtime associated with equipment reconfiguration.
