K1653-5 - Lincoln Prism Mobile Fume Extractor Base Unit MERV 16

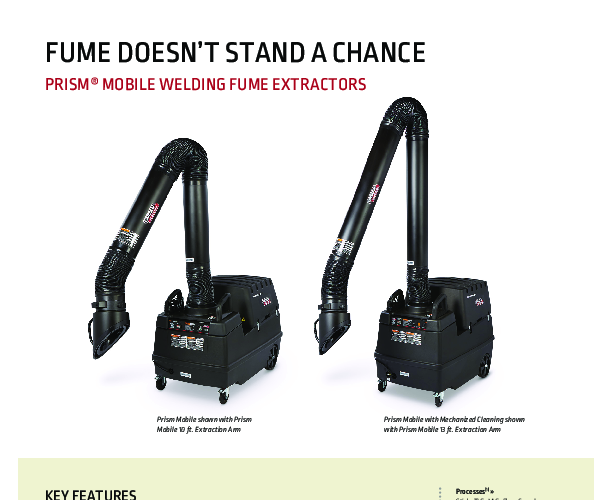

Lincoln Electric Prism Mobile: Industrial Grade Fume Extraction

The Lincoln Electric Prism® Mobile Welding Fume Extractor (K1653-5) is a robust low-vacuum system designed to meet the rigorous demands of modern fabrication environments. Engineered for versatility and efficiency, this mobile unit provides a powerful solution for controlling welding fumes at the source. The K1653-5 is the base unit configuration, allowing facilities to customize their setup with the appropriate extraction arms (sold separately) to best suit their specific workspace layout and reach requirements.

At the core of the Prism Mobile is a high-capacity filtration system featuring a MERV 16 rated main filter. This advanced filter technology is capable of capturing at least 95% of airborne contaminants ranging from 0.3 to 1 micron in size, making it highly effective against the fine particulate matter generated during MIG, TIG, Stick, and Flux-Cored welding processes. To protect this high-efficiency filter and extend its service life, the unit includes an internal spark arrestor that functions as a pre-filter, catching larger particles and preventing sparks from reaching the main filtration media.

Operational efficiency is a key design pillar of the Prism Mobile. The system delivers a generous airflow of 750 SCFM, ensuring rapid evacuation of smoke and fumes from the welder's breathing zone. Despite its powerful performance, the unit operates on standard 120V, single-phase power, drawing only 6.1 Amps, which simplifies installation and allows for use in a wide variety of locations without specialized electrical infrastructure. The integrated filter status indicator provides immediate visual feedback on filter health, eliminating guesswork and ensuring maintenance is performed only when necessary.

Mobility is essential in dynamic shop environments, and the Prism Mobile excels with its ergonomic design. Equipped with heavy-duty front casters and large rear wheels, the unit can be easily maneuvered around the shop floor to position the extraction point exactly where it is needed. With a footprint of just 36 x 32 inches, it occupies minimal floor space while delivering maximum air cleaning performance. This unit is an ideal choice for maintenance departments, fabrication shops, and training centers seeking a reliable, compliant, and effective fume control solution.
