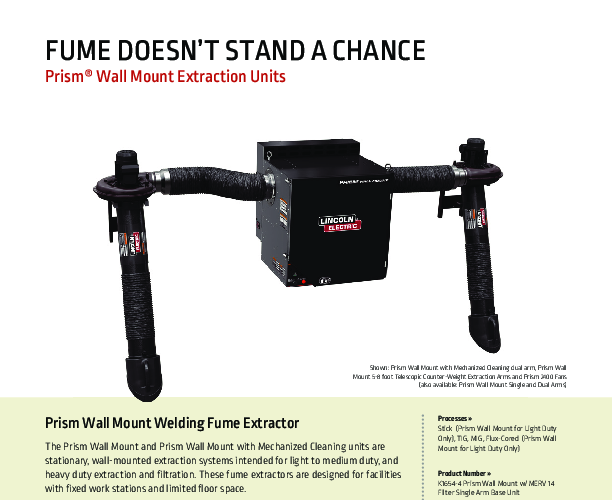

The Lincoln Electric Prism® Wall Mount Mechanized Cleaning One-Pak® (K4468-16) is a high-efficiency, low-vacuum fume extraction system designed for stationary welding applications where floor space is at a premium. This system integrates dual Prism® 2400 stationary fans, each powered by a 1 HP motor, to deliver a total system airflow of approximately 1200 CFM. The unit operates on a standard 115V, 60 Hz, single-phase input, making it compatible with most industrial and commercial electrical infrastructures without requiring specialized high-voltage drops.
At the core of the filtration process is a MERV 16 rated filter cartridge utilizing Nano Coated Cellulose technology. This filtration media is engineered to capture sub-micron particulates, including thermally generated welding fumes and hazardous compounds such as hexavalent chromium, ensuring compliance with strict OSHA air quality standards. The "Mechanized Cleaning" designation indicates an integrated filter cleaning mechanism, likely utilizing pressure differentials or mechanical agitation to dislodge particulate buildup, thereby extending filter life and maintaining consistent static pressure and airflow over time.
The K4468-16 configuration is distinguished by its dual telescopic arms, which offer an extension range of 5 to 8 feet. These counter-weighted arms provide precise positioning stability, allowing operators to place the extraction hood directly at the source of the plume. The inclusion of Arc Sensor/Lamp Kits is a critical technical feature; these sensors detect the UV/IR signature of the welding arc to automatically trigger the extraction fans. This demand-based operation significantly reduces energy consumption and mechanical wear compared to continuous-run systems. The unit's physical footprint is minimized through wall mounting, with dimensions of 38" H x 34" W x 36" L and a gross weight of 290 lbs.
| Additional Information |
|---|
| Packaging Description:1 Per Ea |
| Input Voltage:115V |
| Phase:1-Phase |
| Filter Rating:MERV 16 |
| Air Flow:1200 CFM |
| Mounting Type:Wall Mount |
| Motor Power:1 HP |
| Arm Length:5-8 ft |
| ----- new values below ---- |
| Motor Power:1 HP |
| Cleaning Method:Mechanized |
| Arm Length:5-8 ft |
| Number of Arms:2 |
| Product Weight:290 lbs, 131 kg |
| Dimensions:38 in H x 34 in W x 36 in L |
| Brand:Lincoln Electric |
| Input Voltage:115V |
| Phase:1 Phase |
| Filter Rating:MERV 16 |
| Air Flow:1200 CFM |
| Arm Type:Telescopic |
| Mounting Type:Wall Mount |
