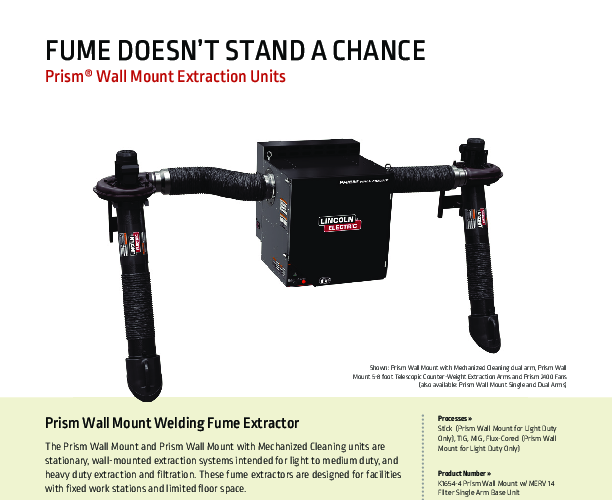

K4468-3 - Lincoln Prism Wall Mount Fume Extractor One-Pak, 10ft Arm + 14ft Crane, 230V

Advanced Fume Extraction for Industrial Environments

The Lincoln Electric Prism® Wall Mount Mechanized Cleaning One-Pak® (K4468-3) represents a pinnacle in stationary low-vacuum fume extraction technology. Designed for the rigorous demands of industrial welding and fabrication shops, this system integrates the robust Statiflex® 800 base unit with the high-performance Prism® 4200 fan. The unit is engineered to filter welding fumes effectively, utilizing a MERV 16 NANO Coated Cellulose filter that captures fine particulate matter, ensuring a safer breathing zone for operators and compliance with strict air quality standards.

Mechanized Cleaning Technology

One of the standout features of this system is its mechanized cleaning capability. Unlike static filter systems that clog rapidly, the Prism® unit employs a cleaning mechanism that dislodges accumulated particulate from the filter media. This feature significantly extends the lifespan of the filter, maintains consistent airflow over time, and reduces the frequency of manual maintenance interventions. The large 568 square foot filtration area further enhances capacity, allowing for longer operational periods between filter changes.

Extended Reach and Flexibility

The K4468-3 One-Pak is specifically configured for maximum coverage. It includes a 14-foot extension crane paired with a 10-foot flexible arm, providing an impressive total reach of approximately 24 feet. This configuration is ideal for large weldments or work cells where the operator needs to move around the workpiece without repositioning the base unit. The flexible arm stays in place once positioned, allowing for precise capture of fumes at the source.

Powerful Performance

Driven by a 2 HP motor operating on 230V 3-phase power, the system delivers an airflow of 1750 CFM. This powerful suction ensures that smoke and fumes are drawn away from the welder's face effectively. The inclusion of a starter/overload switch provides necessary motor protection and convenient control. Additionally, the integrated spark arrestor acts as a critical safety barrier, preventing large sparks from reaching the main filter element.
