K4468-1 - Lincoln Prism Wall Mount Fume Extractor One-Pak with 10ft Arm

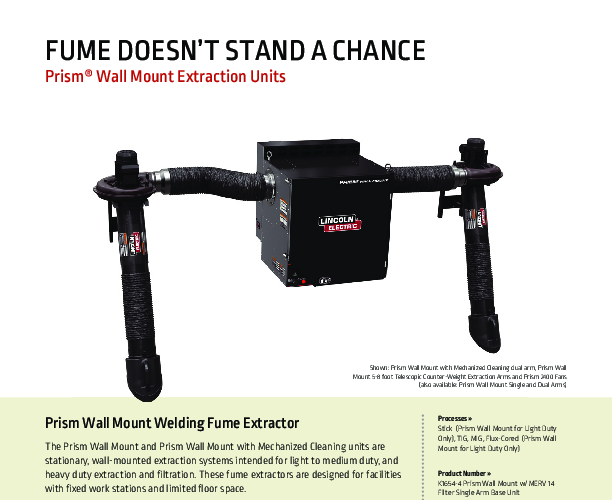

Technical Overview of the Lincoln Prism® Wall Mount System

The Lincoln Electric Prism® Wall Mount Mechanized Cleaning One-Pak® (K4468-1) represents a sophisticated engineering solution for stationary fume extraction in industrial environments. Designed to address the critical need for source capture without consuming valuable floor space, this system integrates a high-efficiency filtration unit with a powerful extraction fan and an articulated arm. The core of the system is the K3681-1 base unit, which houses a substantial 568 square foot (52 m²) pleated filter. This large surface area is critical for maintaining a low air-to-cloth ratio, which directly correlates to filtration efficiency and filter longevity. The included filter set (KP2752-16) is rated at MERV 16, capable of capturing particulate matter in the sub-micron range with 99.999% efficiency, making it suitable for applications involving hexavalent chromium and other hazardous heavy metals.

A defining feature of this configuration is the mechanized cleaning system. Unlike passive filter units that require frequent manual replacement, the Prism® utilizes an integrated cleaning mechanism—typically pressure-based or timer-actuated—to dislodge accumulated particulate from the filter media into a collection bin. This active maintenance of the filter media ensures that the static pressure remains within the operating range of the Prism 2400 fan (K1656-9) for longer periods, delivering a consistent airflow of approximately 735 CFM. The fan itself is a 1 HP, 115V, single-phase unit, optimized for the impedance of the arm and filter bank.

The system includes the K1655-8 flexible extraction arm, which provides a 10-foot reach, allowing the operator to position the hood directly over the weld pool. This source capture method is the most effective hierarchy of control for welding fumes. The unit also features an integrated spark arrestor (KP1673-6), which serves a dual purpose: it prevents large incandescent particles from reaching the combustible filter media, and it acts as a pre-filter to separate coarser dust before it reaches the primary MERV 16 filter. The K4468-1 One-Pak is a comprehensive SKU that simplifies procurement by bundling the base unit, arm, fan, motor starter/overload switch (K1494-2), and mounting hardware into a single deliverable.
