K4468-10 - Lincoln Electric Prism Wall Mount Fume Extractor One-Pak (27ft Reach)

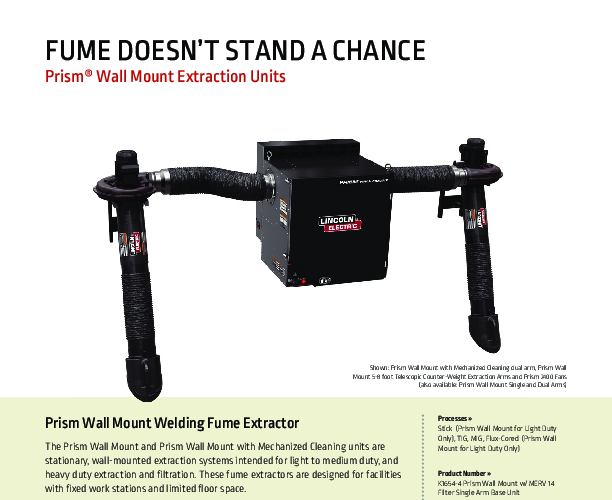

Technical Overview of the Lincoln Electric Prism® Wall Mount System

The Lincoln Electric Prism® Wall Mount Mechanized Cleaning One-Pak® (K4468-10) is a comprehensive low-vacuum, high-volume fume extraction system designed for stationary industrial applications. This package is engineered to provide a complete solution for capturing welding fumes at the source, utilizing a high-efficiency filtration system coupled with an extended reach configuration. The core of the system is the Prism® 4200 stationary fan, a 2 HP motor unit capable of generating 1750 CFM of airflow, ensuring robust suction power necessary for heavy-duty welding environments.

Filtration is handled by a MERV 16 rated filter cartridge, constructed from NANO coated cellulose. This high-efficiency media is capable of capturing sub-micron particulates, making it suitable for hexavalent chromium and other hazardous welding byproducts. The "Mechanized Cleaning" feature of this unit distinguishes it from standard static filter models; it employs a mechanical mechanism to dislodge accumulated particulate from the filter media, depositing it into a collection bin. This process maintains optimal airflow for longer periods and extends the service life of the filter element, reducing operational downtime and consumable costs.

The K4468-10 configuration is specifically notable for its extended reach capabilities. It includes a 14-foot extension crane (K1671-2) paired with a 13-foot flexible extraction arm (K1655-9). This combination provides a total reach of approximately 27 feet from the mounting point, allowing the operator to cover a vast working envelope without needing to reposition the base unit. The system operates on 230V, 3-phase, 60Hz input power and includes a Starter/Overload switch (K1494-10) for motor protection and control. The unit is designed for wall mounting, saving valuable floor space in crowded production facilities.
