The Lincoln Electric K2909-1 is a specialized adapter cord engineered to interface 6-pin remote control devices with welding power sources utilizing the 12-pin Universal Connection. As Lincoln Electric has transitioned many of their industrial power sources to the 12-pin standard to accommodate advanced signaling and process controls, this adapter remains a critical component for integrating standard analog remote controls.

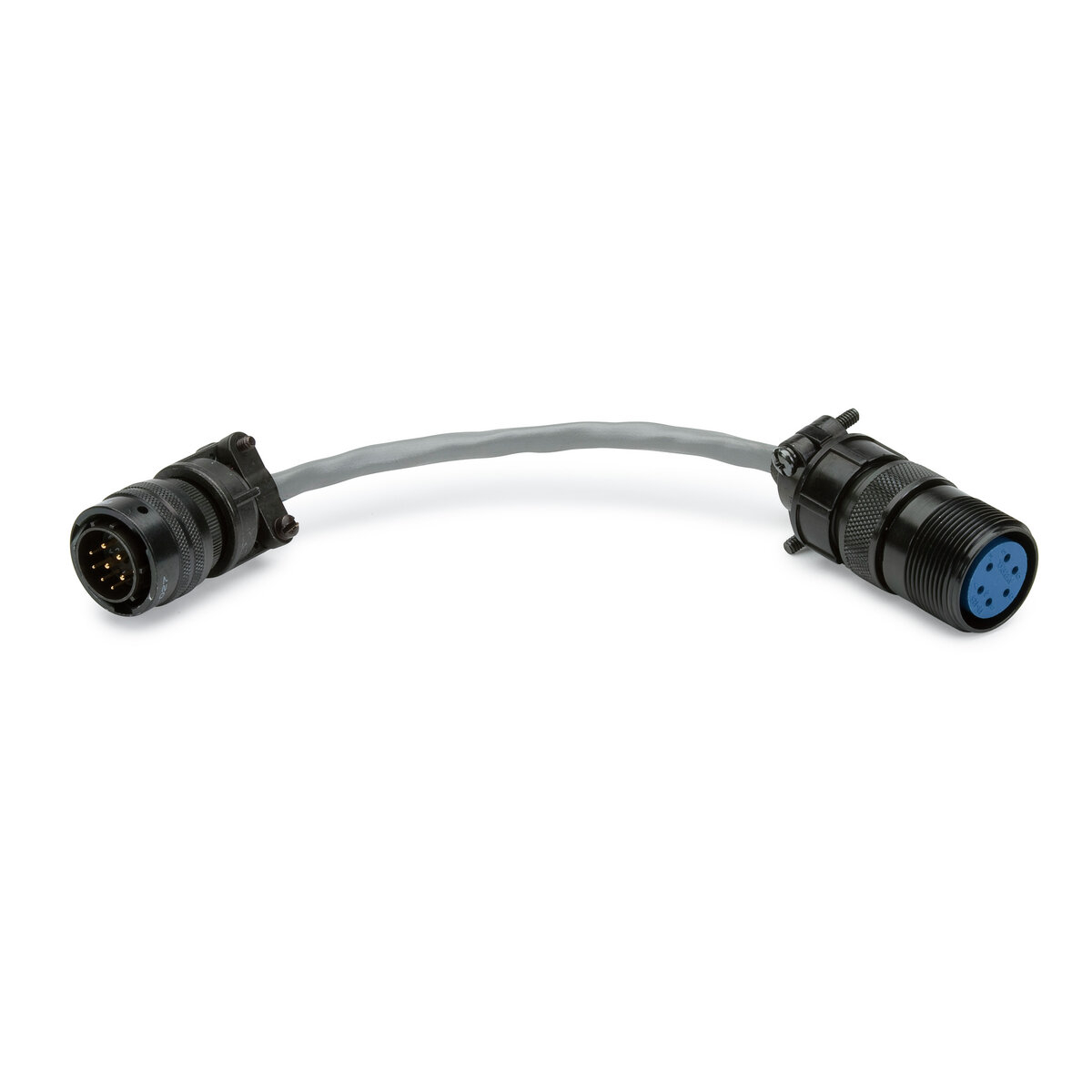

This unit features a male 12-pin Amphenol-style plug on the machine side and a female 6-pin receptacle on the accessory side. It is wired specifically to map the potentiometer and trigger signals from standard Lincoln 6-pin remotes to the appropriate pins on the 12-pin header. This ensures full functionality of amperage control and arc initiation without the need for rewiring or modification of the remote device.
The K2909-1 is verified for use with a wide range of Lincoln Electric remote controls. It enables the connection of the following 6-pin devices to 12-pin machines:
The adapter is constructed with industrial-grade cabling resistant to cuts, abrasion, and oil, suitable for heavy manufacturing environments. The connectors are molded and strain-relieved to prevent failure at the termination points. By utilizing this adapter, operators can maintain the tactile feel and response of their existing 6-pin controls while leveraging the advanced power characteristics of newer 12-pin equipped power sources. It is also applicable for certain MIG gun setups where a 6-pin trigger lead needs to interface with the universal connection, such as with the Magnum PRO 400 series in specific configurations.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Packaging Description:1 Per Ea |
| Product Type:Adapter Cord |
| Connection A:12-Pin Machine Plug (Universal Connection) |
| Connection B:6-Pin Remote Receptacle |
| Compatible Remotes:K870, K963-3, K857, K857-1, K4330-1, K4268-1 |
| Application:Remote Control Adaptation |
| Item:Adapter Cord |
