K4306-MA1440A - AutoDrive S Robotic Feeder Package for MotoMan 1440 with Air-Blast

Technical Overview of the AutoDrive S One-Pak

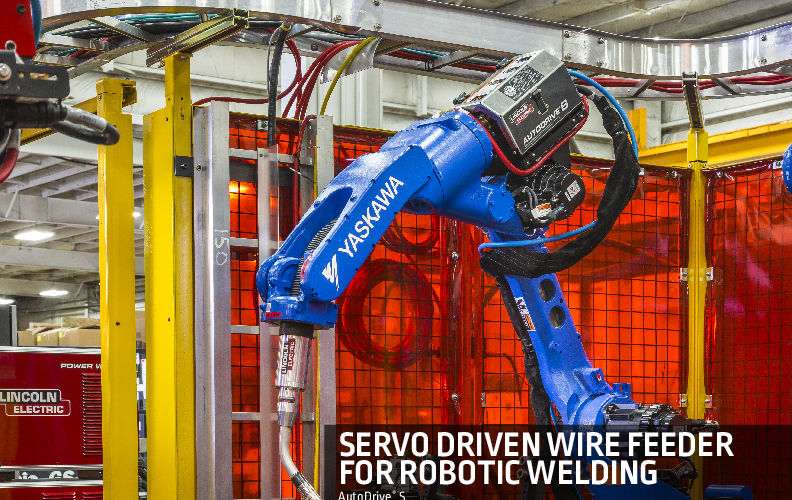

The Lincoln Electric AutoDrive© S Wire Feeder Air-Blast One-Pak© (K4306-MA1440A) is a comprehensive robotic welding solution engineered specifically for the Yaskawa Motoman 1440 robot arm. This package centers around the K4303-1 AutoDrive S Feeder, a high-performance servo-driven unit that integrates seamlessly with Lincoln's Power Wave® platform. The core innovation in this system is the Touch-Retract Starting technology. Unlike traditional high-current scratch starts, this system utilizes the servo motor to sense wire contact with the workpiece and immediately retract the wire. This action allows the arc to initiate at a significantly lower current level, drastically reducing the explosive energy that typically causes spatter during the start sequence.

The inclusion of the Air-Blast feature adds another layer of process reliability. Designed for automated environments, the Air-Blast capability allows for the clearing of debris and loose spatter from the nozzle and contact tip area, ensuring consistent gas flow and preventing short circuits or arc instability caused by buildup. This is particularly critical in high-duty-cycle automotive and fabrication lines where downtime for manual cleaning is costly.

This One-Pak is delivered as a complete integration kit. It includes the specific mounting brackets and insulators required to mechanically secure the feeder to the MotoMan 1440 casting without compromising the robot's range of motion. The package also supplies the complete torch cable assembly, breakaway disk for collision protection, and the necessary front-end consumables (gun tube, nozzle, diffuser, insulator, contact tips, and liner). By bundling the mechanical mounting hardware with the electrical and pneumatic integration components, Lincoln Electric ensures that the K4306-MA1440A provides a plug-and-play experience for systems integrators and plant engineers.
