K4306-MA1440W - AutoDrive S Robotic Wire Feeder Package for MotoMan 1440

Advanced Robotic Wire Feeding for MotoMan 1440

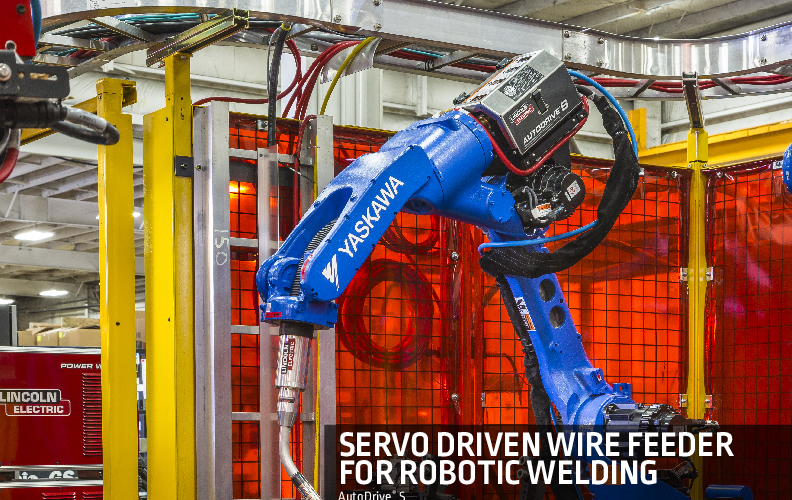

The Lincoln Electric AutoDrive S Wire Feeder Wire Brake One-Pak (K4306-MA1440W) represents the pinnacle of robotic welding integration, specifically engineered for the Yaskawa Motoman 1440 robot arm. This comprehensive package is designed to address the most common challenges in automated welding: inconsistent arc starts, excessive spatter, and premature consumable wear. At the core of this system is the AutoDrive S feeder, a high-performance, servo-driven unit that communicates digitally with Lincoln Electric's Power Wave power sources. This synergy allows for the implementation of Touch-Retract Starting technology.

Touch-Retract Starting fundamentally changes how the welding arc is initiated. Instead of the traditional method of blasting high current to fuse the wire, the AutoDrive S advances the wire to touch the workpiece, senses the electrical contact, and then precisely retracts the wire while initiating the arc at a lower current. This controlled sequence virtually eliminates the explosive spatter associated with standard starting routines. For industrial manufacturing environments, this translates to significantly reduced post-weld cleaning and higher overall part quality. Furthermore, the reduction in start-up energy minimizes damage to the contact tip, extending the lifespan of consumables and reducing downtime for tip changes.

The "One-Pak" designation indicates that this SKU is a complete, turnkey solution. It aggregates all necessary hardware for a successful installation on the MotoMan 1440, including the specific K4254-1 mounting bracket, the KP4305-MA1440 torch cable assembly, and a full suite of Magnum PRO front-end consumables. Crucially, this package includes the KP3364-1 Wire Brake. In robotic applications utilizing touch sensing to locate parts, the wire brake is essential; it clamps the wire firmly to prevent movement during the sensing routine, ensuring that the Tool Center Point (TCP) remains accurate for precise weld placement. By combining advanced servo control, robust mechanical integration, and intelligent software features, the AutoDrive S One-Pak delivers a level of consistency and reliability that is critical for high-volume automotive and general fabrication lines.
