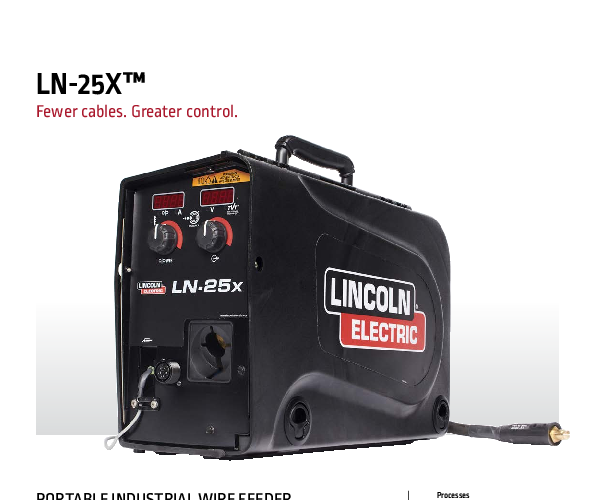

The Lincoln Electric LN-25X Wire Feeder (K4267-4) represents a significant leap forward in field welding technology, designed specifically to address the challenges of construction, structural fabrication, and heavy equipment repair. This model is engineered with CrossLinc Technology, a proprietary innovation that allows for full voltage control at the feeder without the need for an additional control cable. By utilizing the welding arc to communicate voltage settings to the power source, the LN-25X reduces job site clutter, minimizes cable maintenance, and enhances safety by eliminating trip hazards associated with extra cabling.
In addition to CrossLinc, this unit features True Voltage Technology (TVT). In typical field applications where the power source is hundreds of feet away from the arc, voltage drop is a common issue that leads to cold welds and rework. TVT actively monitors the voltage at the feeder and automatically adjusts the power source output to compensate for the drop across the weld cables. This ensures that the voltage you set on the feeder is exactly what is delivered to the arc, guaranteeing consistent weld quality regardless of cable length.
The K4267-4 model comes equipped with an integrated gas flowmeter, providing operators with immediate visual confirmation and control of gas flow right at the point of welding. This eliminates the need to travel back to the gas cylinder to check flow rates, further increasing efficiency. The unit connects via a Twistmate/Dinse style plug, offering a secure, high-conductivity connection that is standard in many modern welding setups. The feeder is housed in a flame-resistant, impact-resistant case that protects the internal components. The electronics are fully encapsulated, shielding them from moisture, dust, and other environmental contaminants common in harsh industrial settings.
With a wire feed speed range of 50 to 700 IPM and a maximum rating of 450 Amps, the LN-25X is a powerhouse capable of handling both MIG and Flux-Cored processes. It supports wire spools up to 12 inches in diameter and wire sizes up to 1/16 inch for solid wire and 5/64 inch for cored wire. This feeder is the ideal solution for professionals demanding reliability, precision, and ruggedness in one portable package.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Packaging Description:pack of 1 |
| Process Type:MIG, Flux-Cored |
| Wire Feed Speed Range:50-700 IPM |
| Max Spool Diameter:12 in (300 mm) |
| Input Voltage:15-110 VDC |
| Amperage Rating:450 A |
| Weight:37 lbs |
| Connection Type:Twistmate/Dinse |
| Wire Diameter Range (Solid):Up to 1/16 in (1.6 mm) |
| Wire Diameter Range (Cored):Up to 5/64 in (2.0 mm) |
