K2312-2 - MAXsa 29 Submerged Arc Wire Feeder

Technical Overview of the Lincoln Electric MAXsa 29 Feed Head

The Lincoln Electric MAXsa® 29 Feed Head (K2312-2) is a sophisticated wire feeding solution engineered specifically for integrator solutions and advanced submerged arc applications. Designed to meet the rigorous demands of full automation and hard automation environments, this unit combines precision control with a compact physical footprint. At the core of its operation is a closed-loop speed control system, which ensures exacting command over wire feed initiation, continuous run speeds, and stopping mechanisms. This level of control is critical for maintaining consistent weld quality in automated heavy fabrication processes where deviations can lead to costly rework.

Physically, the MAXsa 29 is built for versatility. Weighing only 35 pounds and measuring 13 x 16 x 10 inches, it is significantly lighter and more compact than many traditional submerged arc feeders. This reduced footprint allows for easier mounting on robotic arms, gantries, or custom fixtures where space and weight capacity may be limited. The feed head itself is rotatable, providing integrators with the flexibility to adjust the wire entry angle to suit complex joint configurations without reconstructing the entire mounting assembly. The unit is powered by a 40 VDC input, making it compatible with standard industrial automation power supplies and specifically optimized for Lincoln Electric power sources.

Adaptability is further enhanced through the availability of gear ratio conversion kits. These kits allow operators to tailor the wire feed speed (WFS) range to the specific requirements of the welding procedure, with capabilities ranging from as low as 15 IPM up to 500 IPM. The feeder accommodates a broad spectrum of wire diameters, from 1/16 inch up to 7/32 inch for solid wires, ensuring it can handle both fine and heavy-deposition submerged arc applications. The package includes an adjustable wire straightener to ensure smooth feeding and accurate wire placement, along with a starter set of drive rolls for 1/16, 5/64, and 3/32-inch wires.

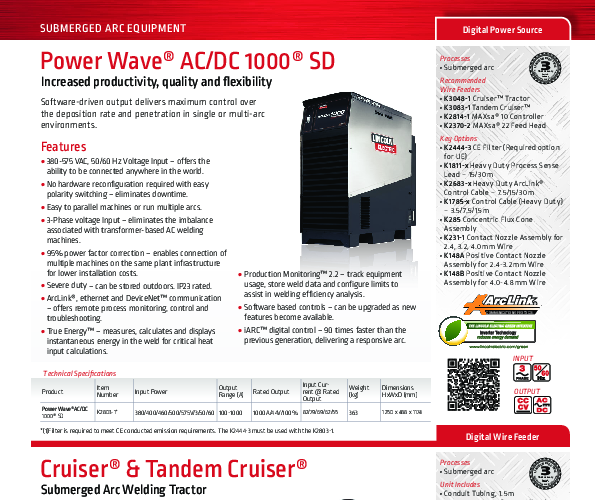

Integration with Lincoln Electric's advanced power sources, such as the Power Wave® AC/DC 1000SD and Flextec® 650 Subarc CE, unlocks the full potential of the MAXsa 29. These combinations allow for high-speed digital communication and waveform control, resulting in superior arc performance. The unit's robust construction and IP23 rating ensure reliability even in harsh industrial environments typical of heavy fabrication sectors.
