K52008-0505 - Lincoln Seam Tracker 250 System with APC Control - 5x5 Slide

Complete Automated Seam Tracking Solution

The Lincoln Electric Seam Tracker™ 250 5 x 5 System with APC One-Pak© (K52008-0505) is a premier solution for integrating precise, automated seam tracking into your heavy fabrication workflow. Designed for industries demanding high consistency—such as pressure vessel manufacturing, shipbuilding, and pipe fabrication—this system utilizes tactile sensing technology to physically track the weld joint, ensuring the torch remains perfectly positioned despite part variations or thermal distortion.

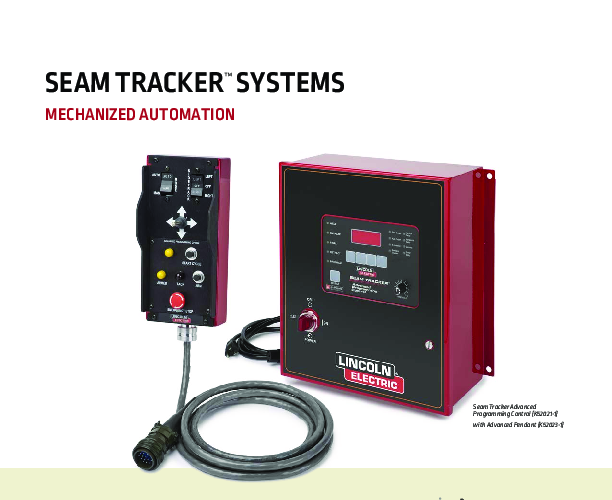

This One-Pak configuration is a turnkey offering that simplifies procurement and setup. It centers around the Advanced Programming Control (APC), a sophisticated unit that allows operators to program entire weld cycles based on either position or time. With the ability to store up to 19 distinct weld schedules, the APC offers flexibility for facilities handling diverse part geometries. The system includes the CS250 Cross Slide, which provides a robust 250-pound load capacity and a 5-inch by 5-inch stroke range, accommodating substantial torch assemblies and adjustment requirements.

Engineered for versatility, the Seam Tracker 250 is compatible with a wide array of welding processes, including Submerged Arc (SAW), MIG (GMAW), Flux-Cored (FCAW), and TIG (GTAW). Its universal integration capability means it can be built around virtually any power source or wire feeder, making it an excellent retrofit option for existing hard automation fixtures. By automating the tracking process, this system reduces the reliance on manual operator skill for torch positioning, thereby increasing throughput and significantly reducing the costs associated with rework and scrap.
