K52005-0606 - Lincoln Seam Tracker 40 System with APC Controller - 6x6 Slide

Advanced Tactile Seam Tracking for Industrial Automation

The Lincoln Electric Seam Tracker™ 40 6 x 6 System with APC One-Pak© (K52005-0606) is a comprehensive solution designed to bring precision and consistency to hard automation welding environments. This system utilizes tactile sensing technology to physically track the weld joint, making it superior in applications where heavy smoke, intense arc glare, or lack of visual contrast might defeat optical tracking systems. By maintaining the optimal torch position relative to the joint, the Seam Tracker™ 40 ensures high-quality welds, reduces rework, and minimizes operator fatigue.

This specific package is a "One-Pak," meaning it is shipped with all the essential components required to set up a functional tracking station. At the heart of the mechanical system is the CS40 Cross Slide, which offers a 6-inch by 6-inch (152mm x 152mm) range of motion. This robust slide assembly is engineered to handle the weight of standard welding torches and accessories while delivering smooth, accurate adjustments on both the horizontal and vertical axes.

Advanced Programming Control (APC)

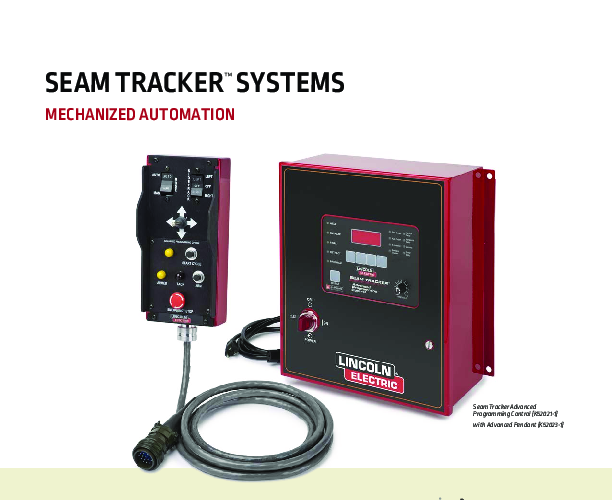

The inclusion of the Advanced Programming Control (APC) elevates this system beyond simple tracking. The APC unit allows for sophisticated management of the entire weld cycle. Operators can configure the system based on position or time, enabling precise control over start and stop points. A key feature of the APC is its memory capacity, which can store up to 19 distinct weld sequence programs. This is particularly beneficial for facilities that handle high-mix production, allowing for rapid changeovers between different part geometries without the need for lengthy reprogramming.

Integration and Versatility

Designed for versatility, the Seam Tracker™ 40 is compatible with a wide array of welding processes, including Submerged Arc (SAW), Gas Metal Arc (GMAW), Flux-Cored (FCAW), and Gas Tungsten Arc (GTAW). Its integration capabilities are extensive, allowing it to work seamlessly alongside various power sources, wire feeders, and other controlled groups. The system includes a remote pendant with a 10-foot cable, giving operators the flexibility to control the process from a safe and convenient distance. Whether used in pressure vessel fabrication, pipe welding, or structural steel manufacturing, this system delivers the reliability required for tough production environments.
