K52004-0606 - Lincoln Electric Seam Tracker 40 Standard System 6x6 Stroke

Precision Automation for Heavy Fabrication

The Lincoln Electric Seam Tracker™ 40 Standard System One-Pak© (K52004-0606) is an engineered solution designed to bring high-precision automated tracking to heavy industrial welding environments. This system utilizes tactile sensing technology to physically track the weld joint, ensuring the torch remains in the optimal position regardless of part fit-up variations or thermal distortion. By maintaining a constant tip-to-work distance and precise lateral alignment, the Seam Tracker 40 significantly improves weld quality and consistency in processes such as Submerged Arc (SAW), Gas Metal Arc (GMAW), Flux-Cored (FCAW), and Gas Tungsten Arc (GTAW).

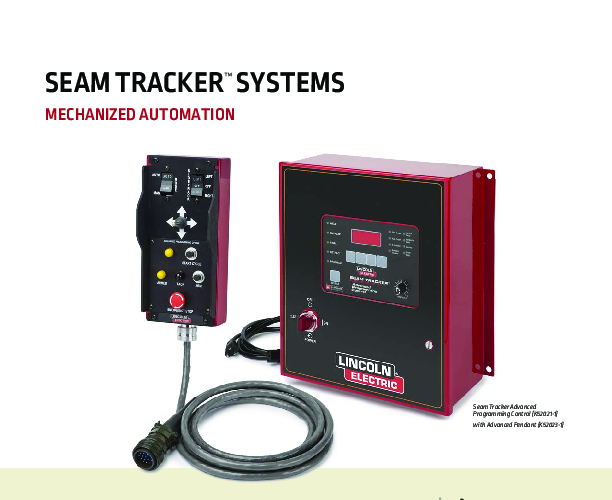

The core of this package is the CS40 Cross Slide assembly, which offers a robust 40-pound load capacity (rated at 6 inches from the faceplate) and a generous 6-inch by 6-inch stroke range. This allows for substantial adjustment in both vertical and horizontal axes, accommodating large workpieces and significant joint deviations. The system is controlled by the K52020-1 Standard Control, a user-friendly interface that simplifies setup and operation, making it accessible even for operators with limited programming experience. The included pendant provides convenient remote adjustments, enhancing operator safety and ergonomics.

Designed for integration, the Seam Tracker 40 can be easily retrofitted to existing welding manipulators, side beams, or custom fixtures. The One-Pak configuration streamlines procurement by including all necessary mounting brackets, cables, and the essential sensor assembly with a 5-axis probe bracket. This ensures that the tactile probe can be positioned accurately relative to the torch, providing reliable feedback to the control unit which instantly corrects the slide position. For industries requiring rigorous quality standards—such as pressure vessel manufacturing, shipbuilding, and pipe fabrication—this system reduces rework and scrap by eliminating human error in torch positioning.
