K52010-1010 - Lincoln Seam Tracker 450 Standard System 10x10 One-Pak

Technical Overview of the Lincoln Seam Tracker™ 450

The Lincoln Electric Seam Tracker™ 450 Standard System One-Pak (K52010-1010) is a comprehensive hard automation solution designed for precise joint tracking in heavy industrial environments. This system utilizes tactile sensor technology to physically monitor the weld joint, automatically adjusting the torch position to maintain optimal alignment. The core of this package is the CS450 Cross Slide, a robust motorized slide assembly capable of handling a load capacity of up to 450 lbs (204 kg). This high load rating makes it particularly suitable for carrying heavy Submerged Arc (SAW) equipment, including wire drives, torches, and flux delivery systems.

The system provides a stroke length of 10 inches (254 mm) in both the horizontal and vertical axes, offering a generous range of motion for correcting part fit-up variations and thermal distortion during the weld cycle. The included Standard Control unit (K52020-1) offers straightforward operation without the complexity of advanced programming, making it accessible for operators with varying levels of automation experience. The control system processes signals from the tactile probe—which rides directly in the joint—and translates them into corrective movements of the cross slide.

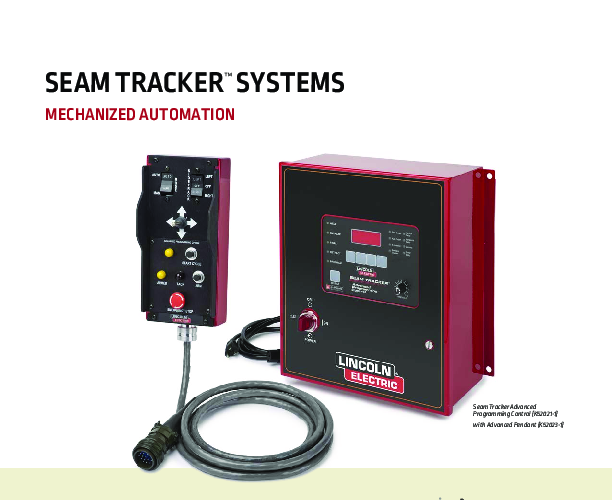

This One-Pak includes the complete electromechanical ecosystem required for installation: the control box, a remote pendant with a 10-foot cable for operator convenience, necessary interconnect cables, the sensor assembly, a five-axis probe bracket for flexible sensor positioning, and a torch mounting kit. It is engineered to support multiple welding processes, including GMAW, FCAW, GTAW, and SAW, and features an open integration architecture that allows it to function with welding power sources from Lincoln Electric as well as other manufacturers.
