K52011-1010 - Lincoln Seam Tracker 450 APC System 10x10 Stroke

Advanced Automation for Heavy Fabrication

The Lincoln Electric Seam Tracker™ 450 10 x 10 System with APC One-Pak© (K52011-1010) represents a pinnacle in tactile seam tracking technology, designed to bring precision and consistency to automated welding operations. In heavy industries such as shipbuilding, pressure vessel manufacturing, and structural fabrication, maintaining the correct torch position relative to the joint is critical. This system utilizes a highly sensitive tactile probe that physically rides along the weld joint, detecting variations in fit-up and thermal distortion in real-time. By mechanically signaling the cross slide to adjust the torch position, it ensures optimal bead placement without the need for constant manual intervention.

Comprehensive One-Pak Configuration

This specific package is delivered as a "One-Pak," a curated bundle that simplifies the procurement and installation process. Instead of sourcing individual components, operators receive a complete turnkey solution. The kit includes the robust CS450 Cross Slide with a generous 10-inch by 10-inch (254mm x 254mm) stroke, providing ample travel range for large workpieces and deep grooves. Also included are the necessary control cables, the seam sensor assembly, a five-axis probe bracket for flexible positioning, and a weld torch mounting kit. This all-in-one approach ensures that all parts are compatible and ready for immediate integration onto your welding manipulator or beam.

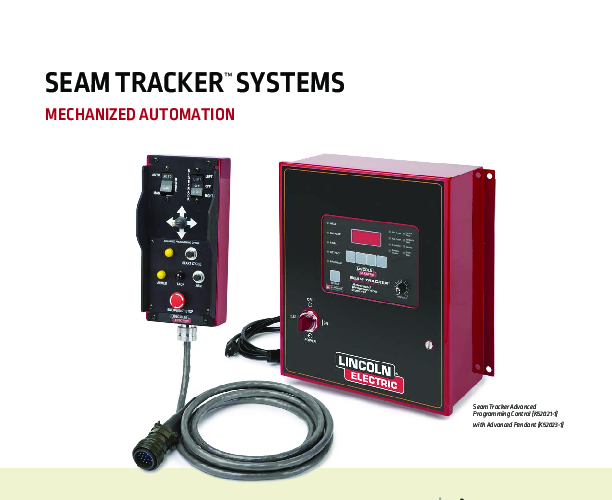

Advanced Programming Control (APC)

Differentiating this system is the inclusion of the Advanced Programming Control (APC). Unlike standard analog controls, the APC offers sophisticated digital management of the welding cycle. Users can program the entire sequence based on either position or time, allowing for precise control over start delays, crater fill, and overlap. The unit is capable of storing up to 19 distinct weld schedules, making it ideal for facilities that handle high-mix, repetitive welding tasks. The APC integrates seamlessly with the provided pendant, giving operators an intuitive interface to adjust parameters and monitor system performance on the fly. Whether utilizing Submerged Arc (SAW), Gas Metal Arc (GMAW), or Flux-Cored (FCAW) processes, the Seam Tracker 450 with APC delivers the reliability required for high-stakes industrial welding.
