Technical Overview of the Lincoln Electric Seam Tracker™ 450 System

The Lincoln Electric Seam Tracker™ 450 5 x 5 System (SKU: K52011-0505) is a robust tactile guidance solution designed for automated welding environments. This specific configuration is supplied as a One-Pak©, bundling all necessary components for immediate integration into heavy fabrication workflows. At the core of the system is the CS450 Cross Slide, which provides 5 inches (127 mm) of travel in both vertical and horizontal axes, allowing for substantial positional adjustment during operation.

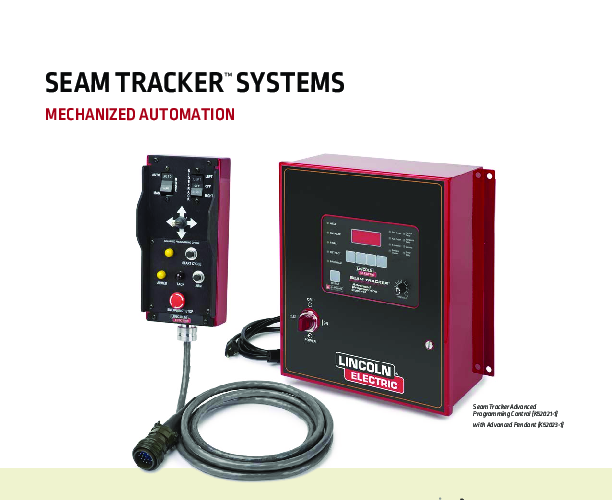

Control is managed by the Advanced Programming Control (APC) unit (K52021-1). Unlike standard controls, the APC offers enhanced functionality, including the ability to program the entire weld cycle based on either position or time. Operators can store and recall up to 19 distinct weld sequence programs, making this system highly adaptable for facilities handling multiple part geometries. The system utilizes a tactile probe (Seam Sensor Assembly K52019-1) to physically track the weld joint, providing real-time feedback to the cross slide to maintain optimal torch alignment.

The system is engineered for versatility and supports a wide range of arc welding processes, including Submerged Arc (SAW), Gas Metal Arc Welding (GMAW), Flux-Cored Arc Welding (FCAW), and Gas Tungsten Arc Welding (GTAW). The K52011-0505 package includes the APC controller, a pendant with a 10-foot cable, the 5x5 cross slide, interconnect cables, a 5-axis probe bracket, torch mounting kit, sensor insulator, and a standard 1/8-inch sensor tip. It is designed to integrate with almost any welding power source or feeder, making it a universal solution for hard automation.
