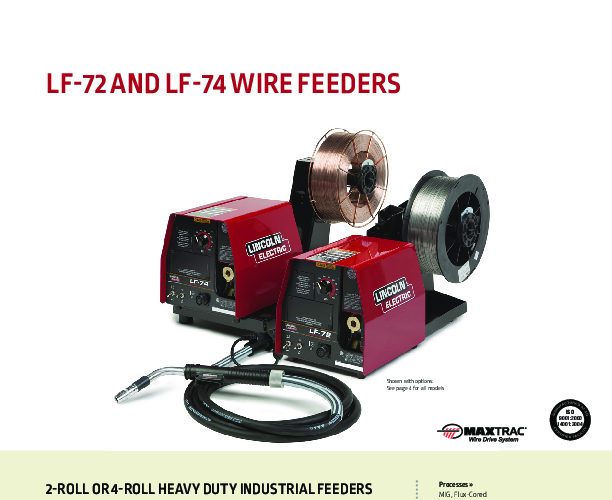

K2327-7 - Lincoln LF-72 Heavy Duty Bench Wire Feeder

Industrial-Grade Wire Feeding Solution

The Lincoln Electric LF-72 Wire Feeder (K2327-7) is a robust bench-model unit designed to meet the rigorous demands of industrial welding operations. Engineered for versatility and durability, this feeder is compatible with a broad spectrum of Lincoln Electric power sources, making it a staple in general fabrication, manufacturing, and heavy equipment production. The unit is specifically constructed to handle both MIG (GMAW) and Flux-Cored (FCAW) welding processes, providing operators with the flexibility needed for diverse project requirements.

Patented MAXTRAC® Technology

At the core of the LF-72 is Lincoln's patented MAXTRAC® Wire Drive System. This heavy-duty, cast aluminum wire drive features a dual-gear driven system that ensures positive feeding performance. The system is designed to minimize wire crushing and deformation, which is critical for maintaining arc stability and weld quality. The drive rolls can be changed quickly without the use of tools, significantly reducing setup time when switching between wire sizes or types. Additionally, the brass-to-brass gun connection optimizes electrical conductivity, ensuring that the full power of the welding source is transferred efficiently to the arc.

Performance and Reliability

The K2327-7 model is built to last. It features a totally enclosed wire drive motor that is protected from dust and contaminants common in shop environments. The feeder offers a wide wire feed speed range of 50 to 800 inches per minute (ipm), allowing for precise control over deposition rates. It supports solid wire diameters from .023 to 1/16 inch and cored wires from .030 to 5/64 inch. With a duty cycle rating of 60% at 500 amps, the LF-72 is capable of sustaining high-amperage welding for extended periods, making it an ideal choice for heavy-duty applications where reliability is non-negotiable.

User-Centric Design

Lincoln Electric has prioritized operator convenience with the LF-72. The control panel is straightforward, featuring a calibrated wire feed speed knob for easy and repeatable settings. The unit's compact benchtop footprint allows it to be easily integrated into existing welding cells without occupying excessive space. While this specific SKU (K2327-7) does not include a welding gun, it is compatible with a wide array of Magnum® PRO and other standard welding guns, allowing users to customize their setup based on their specific ergonomic and amperage needs.
