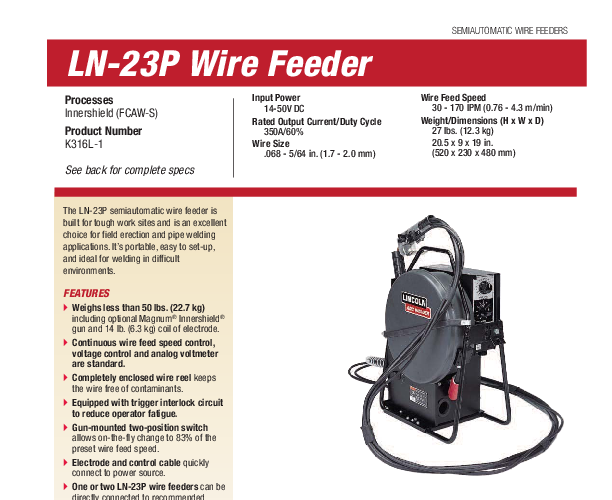

K316L-1 - Lincoln LN-23P Portable Semiautomatic Wire Feeder K316L-1

Rugged Portability for Field Welding

The Lincoln Electric LN-23P Wire Feeder (K316L-1) is engineered specifically to meet the rigorous demands of field erection and pipe welding. In environments where mobility and reliability are paramount, this semiautomatic wire feeder stands out as a premier solution. Weighing in at less than 50 lbs (22.7 kg)—even when equipped with an optional gun and a 14 lb coil of electrode—the LN-23P is designed to be carried easily around complex jobsites, reducing the physical strain on operators and increasing overall efficiency.

One of the critical challenges in field welding is maintaining the integrity of the welding wire against environmental contaminants such as dust, dirt, and moisture. The LN-23P addresses this with a completely enclosed wire reel case, ensuring that your Innershield (FCAW-S) wire remains clean until it hits the arc. This feature is essential for maintaining high-quality welds in outdoor or dirty construction environments. The unit is optimized for 14 lb (6.3 kg) coils, striking a perfect balance between run-time capacity and portability.

Precision Control and Versatility

Beyond its physical ruggedness, the LN-23P offers sophisticated control features to enhance weld quality. It comes standard with continuous wire feed speed control and voltage control, alongside an analog voltmeter for precise monitoring. A unique productivity feature is the gun-mounted two-position switch, which allows the operator to change the wire feed speed on-the-fly to 83% of the preset value. This is particularly useful for out-of-position welding or when navigating variable joint fit-ups without returning to the feeder.

The system is designed for rapid deployment. The included 25-foot control and electrode cables feature quick-connect mechanisms, allowing for fast setup and teardown. For complex setups, two LN-23P feeders can be connected directly to recommended Lincoln power sources, allowing operators to switch between different wires or procedures (though only one feeder can be active at a time). This unit is a robust, industrial-grade tool built to ISO 9001 standards, ensuring long-term durability and performance.
