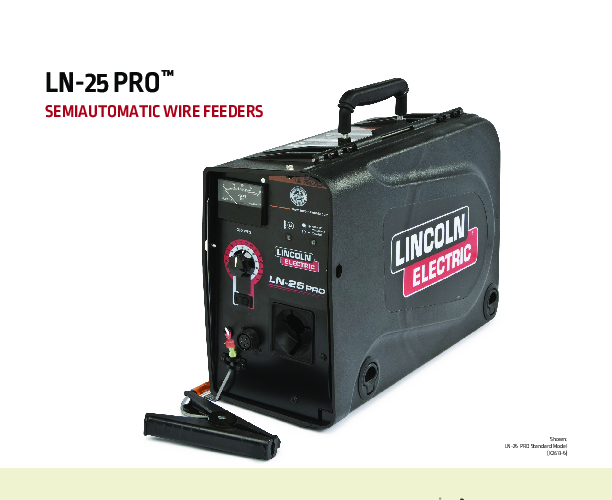

The Lincoln Electric LN-25 PRO / Magnum PRO Curve 300 One-Pak (K4101-1) is a comprehensive portable wire feeding system designed for heavy-duty industrial applications. This package integrates the robust LN-25 PRO Standard model (K2613-5) with a premium Magnum PRO Curve 300 MIG gun, creating a ready-to-weld solution for field erection, structural fabrication, and pipeline work. The system operates on an input voltage range of 15-110 VDC, utilizing arc voltage sensing technology to function seamlessly with Constant Current (CC) or Constant Voltage (CV) power sources without the need for a separate control cable.
At the core of the LN-25 PRO is the Maxtrac® Wire Drive System. This heavy-duty, cast aluminum drive mechanism features a dual-driven roll design that ensures consistent wire feeding performance. The system supports a wire feed speed (WFS) range of 50 to 700 inches per minute (1.3–17.7 m/min). A notable technical feature is the Dual Range Wire Feed Speed control, which provides finer resolution at the low end of the speed range, critical for precise stainless or aluminum applications. The feeder accommodates solid wire diameters up to 1/16 inch (1.6 mm) and cored wires up to 5/64 inch (2.0 mm).
Engineered for harsh environments, the unit is housed in a flame-resistant, impact-resistant polycarbonate case. This case is designed for modularity and can be replaced in under five minutes if damaged, minimizing downtime. Internally, the Printed Circuit Boards (PCBs) are fully potted and trayed, offering superior protection against moisture, humidity, and corrosion—common failure points in field welding equipment. The unit is rated for 450 amps at a 60% duty cycle, ensuring it can handle high-amperage flux-cored applications effectively.
The K4101-1 One-Pak simplifies procurement by including the Magnum PRO Curve 300 gun (K2951-2-10-45), which is rated for 300 amps and features Lincoln's Curve handle for improved ergonomics. Also included is a drive roll kit (KP1697-045C) specifically for .040-.045 inch cored wires, making this package immediately suitable for structural flux-cored welding tasks out of the box.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Packaging Description:pack-of-1 |
| Weld Process:MIG (GMAW), Flux-Cored (FCAW) |
| Voltage:15-110 VDC |
| Duty Cycle:60% @ 450A |
| Wire Feed Speed Range:50-700 ipm (1.3-17.7 m/min) |
| Max Wire Diameter (Solid):1/16 in (1.6 mm) |
| Max Wire Diameter (Cored):5/64 in (2.0 mm) |
| Input Voltage:15-110 VDC |
| Weight:55.7 lbs (25.3 kg) |
| Dimensions:15 x 8.7 x 23.2 in |
| Feeder Type:Portable, Voltage Sensing |
