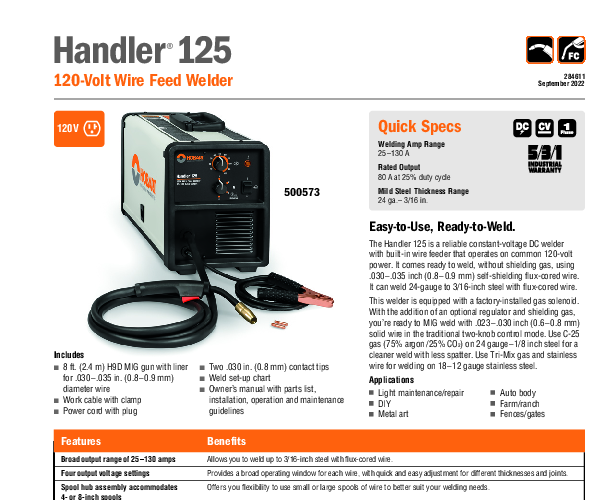

500573 - Hobart Handler 125 115V Wire Feed Welder

Technical Overview of the Hobart Handler 125

The Hobart Handler 125 (SKU 500573) is a compact, constant-voltage (CV) DC wire welding power source designed for light industrial, maintenance, and repair applications. Engineered for portability and reliability, this unit operates on standard 115/120 VAC single-phase input power, making it highly adaptable for environments where high-voltage industrial power is unavailable. The machine provides a broad amperage output range of 25 to 130 amps, enabling the welding of mild steel materials ranging from 24 gauge (0.8 mm) up to 3/16 inch (4.8 mm) in a single pass.

At the core of the Handler 125 is a heavy-duty transformer and rectifier assembly protected by self-resetting thermal overload technology. This ensures the power source shuts down safely in the event of overheating, preserving the integrity of the internal components. The unit features a four-position voltage control selector, allowing operators to fine-tune the arc characteristics to match specific wire diameters and material thicknesses. The wire feed system utilizes a durable feed head with a quick-release drive roll tension lever, facilitating rapid wire changes and consistent feeding performance. The wire feed speed is adjustable from 88 to 545 inches per minute (IPM), accommodating various welding speeds and deposition rates.

A key technical distinction of the Handler 125 is its factory-installed gas solenoid valve. This integrated component allows for seamless transition between Self-Shielded Flux-Cored Arc Welding (FCAW-S) and Gas Metal Arc Welding (GMAW/MIG) without the need for aftermarket modification. When set up for MIG welding, the unit supports the use of solid wires (.023–.030 inch) with shielding gases such as C25 (75% Argon / 25% CO2) or Tri-Mix for stainless steel applications. For flux-cored applications, the unit is ready to weld out of the box with .030–.035 inch wire. The built-in contactor is a critical safety feature, keeping the welding wire electrically "cold" until the gun trigger is actuated, reducing the risk of accidental arc strikes.

The chassis is designed for durability and flexibility, featuring a spool hub assembly that accepts both 4-inch (1-2 lb) and 8-inch (10-11 lb) wire spools. Weighing approximately 57.5 lbs, the unit maintains a small footprint (13.5" H x 10" W x 19.4" D), making it an optimal solution for mobile repair trucks, farm workshops, and facility maintenance carts.
