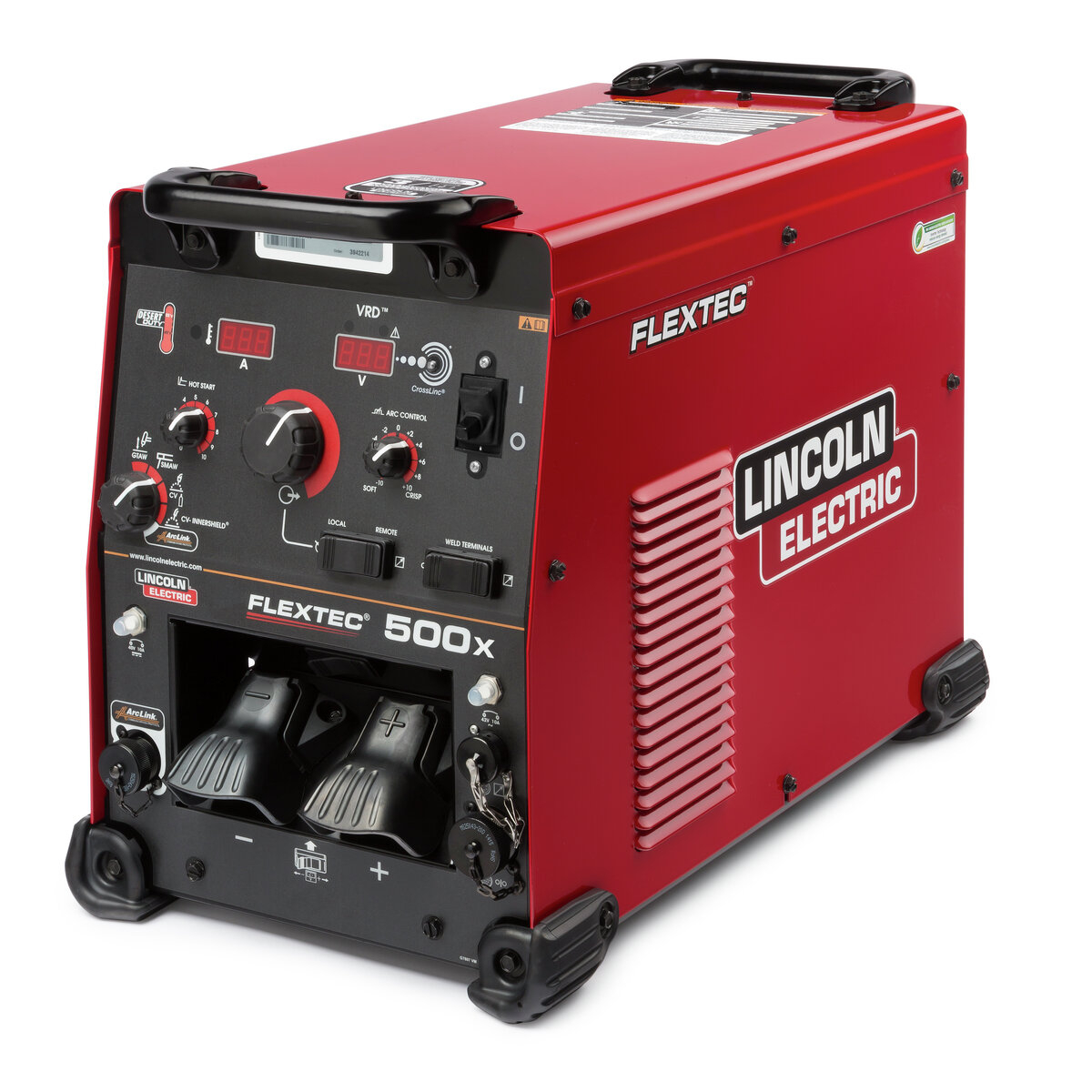

The Lincoln Electric Flextec 500X Multi-Process Welder is engineered to deliver powerful performance in the most demanding industrial environments. Designed for versatility, this 500-amp power source handles a wide array of welding processes including MIG, TIG, Stick, Flux-Cored, and Carbon Arc Gouging. Whether you are working in a shipyard, on a construction site, or in a heavy fabrication shop, the Flextec 500X provides the reliability and output required for heavy-duty applications.
One of the standout features of the Flextec 500X is its integrated CrossLinc technology. This innovative system allows for full remote control of the power source directly through the welding leads, eliminating the need for fragile and expensive control cables. By enabling voltage and amperage adjustments at the wire feeder hundreds of feet away, CrossLinc improves weld quality, increases arc time, and enhances safety by reducing cable clutter on the jobsite. It also features True Voltage Technology (TVT), which automatically compensates for voltage drops across long welding cables to ensure the delivered voltage matches your settings.
Reliability is paramount in outdoor and industrial settings. The Flextec 500X boasts an IP23 rating, ensuring it is protected against water spray and foreign objects, making it an excellent choice for outdoor construction and field erection. Furthermore, it is "Desert Duty" rated, capable of operating at full capacity in extreme temperatures up to 55°C (131°F). The internal components are equally protected; PC boards are trayed and potted to shield sensitive electronics from dust, moisture, and vibration. The unit is housed in a durable, powder-coated aluminum case with shock-absorbing rubber feet and heavy-duty alloy handles.
Beyond standard CV and CC modes, the Flextec 500X is ArcLink enabled. When paired with a compatible digital wire feeder, it unlocks synergic pulse MIG modes for superior welding on steel, stainless steel, and aluminum. The machine also offers optimized stick welding modes for both cellulosic and low-hydrogen electrodes, as well as Touch-Start TIG for easy, contamination-free arc initiation without high frequency. This flexibility makes the Flextec 500X a truly universal power source for modern industry.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:500 |
| Duty Cycle:60% |
| Voltage:380/460/575 V |
| Weld Process:Multi-Process |
| Phase:3 Phase |
| Weight:136 lb |
| Process Type:Multi-Process, MIG, TIG, Stick, Gouging, FCAW |
| Input Voltage:380 V, 460 V, 575 V |
| Output Range:5-500A |
| Cooling Type:Fan Cooled |
| Portability:Portable with Handles |
| Dimensions:18.8 in x 14 in x 27.5 in |
| Control Interface:Digital, CrossLinc, ArcLink |
| Applications:Shipyards, Construction, Fabrication, Pipeline |
| Warranty Period:3 Years |
| Protection Class:IP23 |
| Packaging Description:1 of 1 |
