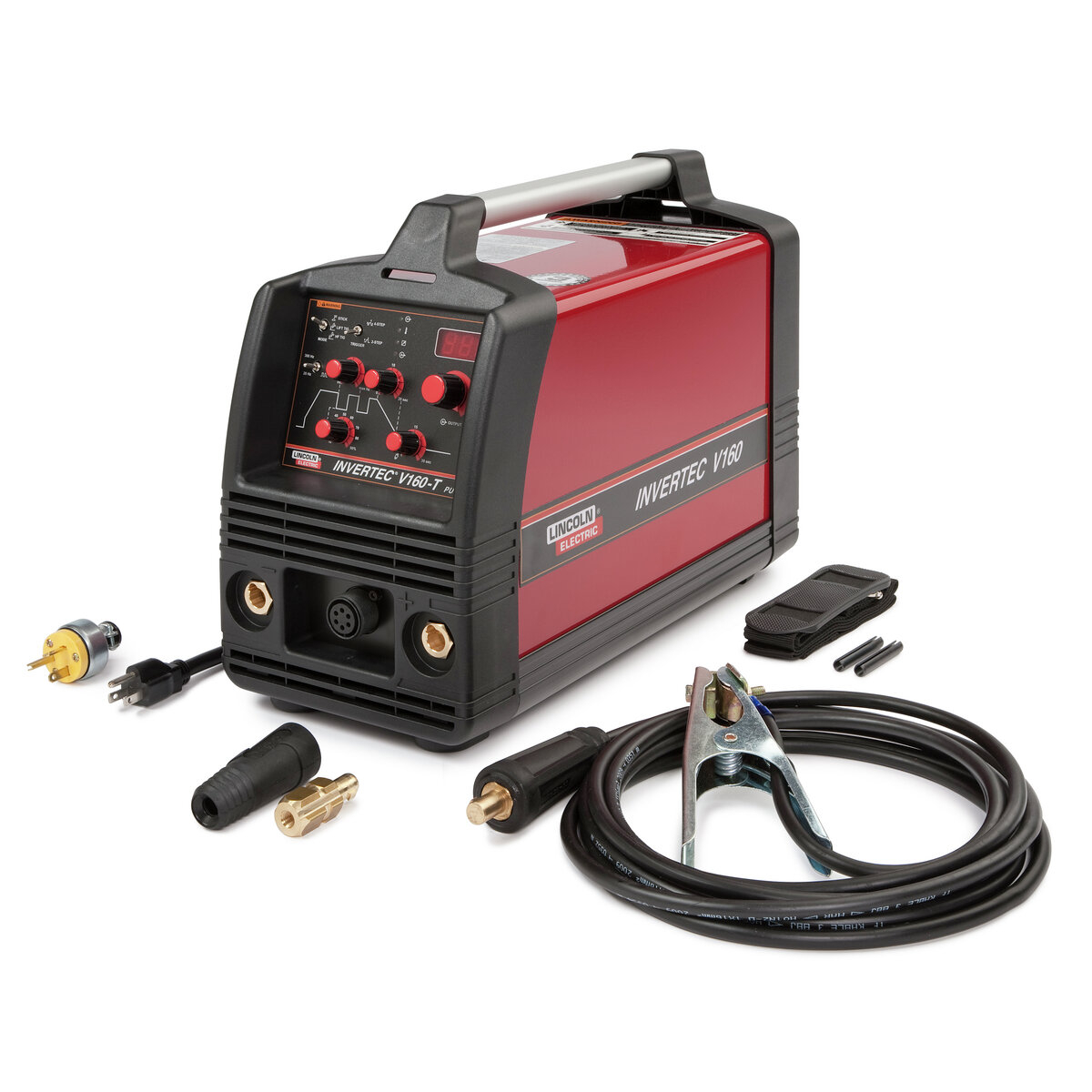

K1845-1 - Lincoln Electric Invertec V160-T DC TIG/Stick Inverter

Precision DC TIG Welding with the Invertec V160-T

The Lincoln Electric Invertec V160-T (K1845-1) is a compact powerhouse designed for the rigorous demands of alloy fabrication, process piping, and critical maintenance. Engineered with advanced inverter technology, this machine delivers a maximum output of 160 amps while maintaining a lightweight form factor of just 24 pounds. It is specifically built to provide superior arc control in both TIG and Stick modes, making it an indispensable tool for professional welders who require precision and mobility.

One of the standout features of the V160-T is its integrated Pulse Control. This function allows operators to minimize heat input when welding thin materials, significantly reducing distortion and burn-through. Furthermore, the pulsing capability aids in controlling the weld puddle for uphill welding on curved surfaces, such as pipes, and ensures a consistent bead appearance by moderating filler metal deposition. Combined with High-Frequency (HF) TIG starting, the machine ensures clean, contamination-free arc initiation every time, eliminating the risk of tungsten inclusions often associated with scratch-start methods.

Versatility is at the core of the V160-T's design. The unit automatically connects to either 115V or 230V single-phase power, allowing it to be used in a workshop environment or out in the field where power sources may vary. The intuitive control panel and simple Twist-Mate torch connections facilitate rapid changeovers between TIG and Stick processes, maximizing productivity. Whether you are working on stainless steel fabrication or on-site repairs, the Invertec V160-T provides the reliability and performance expected from Lincoln Electric.

Key Technical Benefits

The machine boasts a robust duty cycle, capable of delivering 130 amps at 100% duty cycle for both TIG and Stick processes (depending on input voltage). This ensures continuous operation for demanding tasks without frequent thermal timeouts. The rugged case design protects internal components from the harsh realities of industrial environments, while the included adjustable shoulder strap enhances portability for climbing or moving between work zones.
