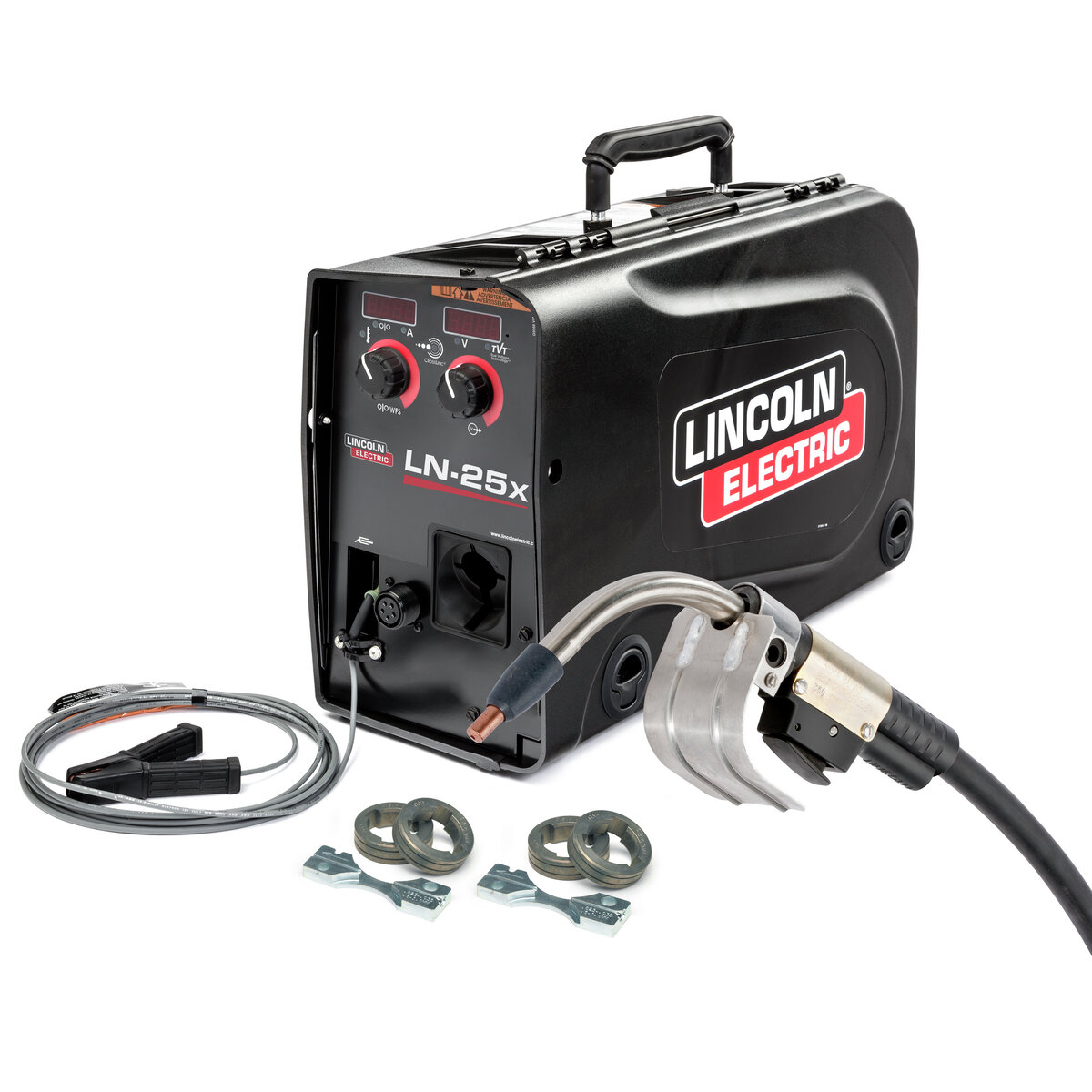

The Lincoln Electric LN-25X Wire Feeder One-Pak (K4266-2) represents the pinnacle of portable wire feeding technology designed specifically for the rigors of field construction, structural fabrication, and shipbuilding. This comprehensive package pairs the advanced LN-25X feeder with the industry-standard K126 PRO Innershield gun, creating a ready-to-weld solution for heavy-duty flux-cored applications. At the heart of this system is Lincoln's proprietary CrossLinc Technology, a breakthrough in welding communication that allows for full voltage control at the feeder without the need for fragile and expensive control cables. By utilizing the welding arc cable for data transmission, operators can adjust settings hundreds of feet from the power source, significantly improving productivity and safety by reducing job site clutter.
Engineered for consistency and reliability, the LN-25X features True Voltage Technology (TVT). In long cable runs common to construction sites, voltage drop can severely impact weld quality. TVT automatically senses the voltage drop and adjusts the power source output to ensure the voltage at the arc matches the operator's setting. This eliminates the guesswork and manual compensation typically required in long-distance welding setups. The unit is built around the Maxtrac Wire Drive System, a heavy-duty cast aluminum drive mechanism that ensures precise feeding. The split wire guide system reduces birdnesting and allows for easy cleaning, while the tachometer feedback loop maintains accurate wire feed speeds ranging from 50 to 700 IPM.
Durability is paramount in the LN-25X design. The internal components are housed in a replaceable, flame-resistant case that withstands the harsh environments of industrial jobsites. The PC boards are fully potted and encapsulated to protect against moisture, corrosion, and vibration. This One-Pak configuration is specifically tailored for flux-cored wire welding, including drive rolls for 5/64" and 1/16" wires, making it an ideal choice for structural steel erection and heavy equipment repair. With a max rating of 450 amps and compatibility with spools up to 44 lbs, the LN-25X is a powerhouse tool for professional welders demanding precision and ruggedness.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Weld Process:MIG (GMAW) |
| Amperage:450 |
| Packaging Description:pack of 1 |
| Wire Feed Speed Range:50-700 IPM |
| Wire Diameter Range (Solid):0.023 - 1/16 in (0.6 - 1.6 mm) |
| Wire Diameter Range (Cored):0.030 - 5/64 in (0.8 - 2.0 mm) |
| Max Spool Capacity:44 lb (20 kg), 12 in (300 mm) |
| Input Voltage:15-110 VDC |
| Technology:CrossLinc, True Voltage Technology (TVT), Maxtrac Drive System |
| Included Gun:K126 PRO 350A FCAW-SS (15 ft) |
