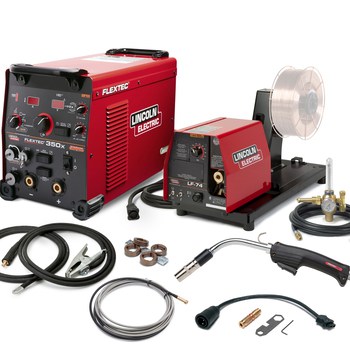

The Lincoln Electric Flextec 350X PowerConnect / LF-74 One-Pak (K4274-1) represents a pinnacle in industrial welding system integration, combining the versatile Flextec 350X power source with the robust LF-74 wire feeder. Engineered for environments ranging from fabrication shops to rugged construction sites, this package leverages advanced inverter technology to deliver high efficiency and superior arc performance across multiple processes. The core of this system, the Flextec 350X, is built with PowerConnect Technology, which automatically senses and adjusts to any input power from 200V to 600V, single or three-phase, and 50 or 60 Hz. This eliminates the need for manual relinking, preventing potential damage from incorrect input connections and allowing the machine to be deployed globally without modification.
A critical technical advantage of this system is the inclusion of CrossLinc Technology. This proprietary communication protocol allows for voltage and amperage control at the wire feeder using the standard weld power cable, eliminating the need for a separate control cable. This reduces cable clutter, lowers the risk of cable damage, and simplifies setup, particularly in field applications where long cable runs are necessary. The power source delivers a rated output of 350A at 60% duty cycle and is capable of Stick, DC TIG, MIG, Flux-Cored, and Carbon Arc Gouging (up to 3/16 inch carbons). The unit is housed in an IP23-rated enclosure, ensuring protection against moisture and dust intrusion, and is Desert Duty Rated for operation in ambient temperatures as high as 55°C (131°F).
The package includes the LF-74 Bench Model Wire Feeder, a workhorse designed for high-duty cycle industrial applications. The LF-74 features a patented 4-roll wire drive system (configuration may vary, check specific drive roll inclusion) that ensures consistent wire feeding even with softer wires or long gun cables. The One-Pak configuration simplifies procurement by bundling the power source, feeder, Magnum PRO Curve 400 gun, cart, and necessary cables into a single SKU, ensuring component compatibility and immediate readiness for operation upon delivery.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:350 |
| Voltage:200-600 V |
| Duty Cycle:60% |
| Weld Process:Multi-Process |
| Packaging Description:1-of-1 |
| Process Type:MIG, TIG, Stick, Flux-Cored, Arc Gouging |
| Input Voltage:200-600V |
| Phase:1-Phase, 3-Phase |
| Output Range:5-425A |
| Wire Feed Speed Range:50-800 ipm |
| Technology:PowerConnect, CrossLinc |
| Protection Rating:IP23 |
| Applications:Construction, Fabrication, Shipbuilding, Rental Fleets |
