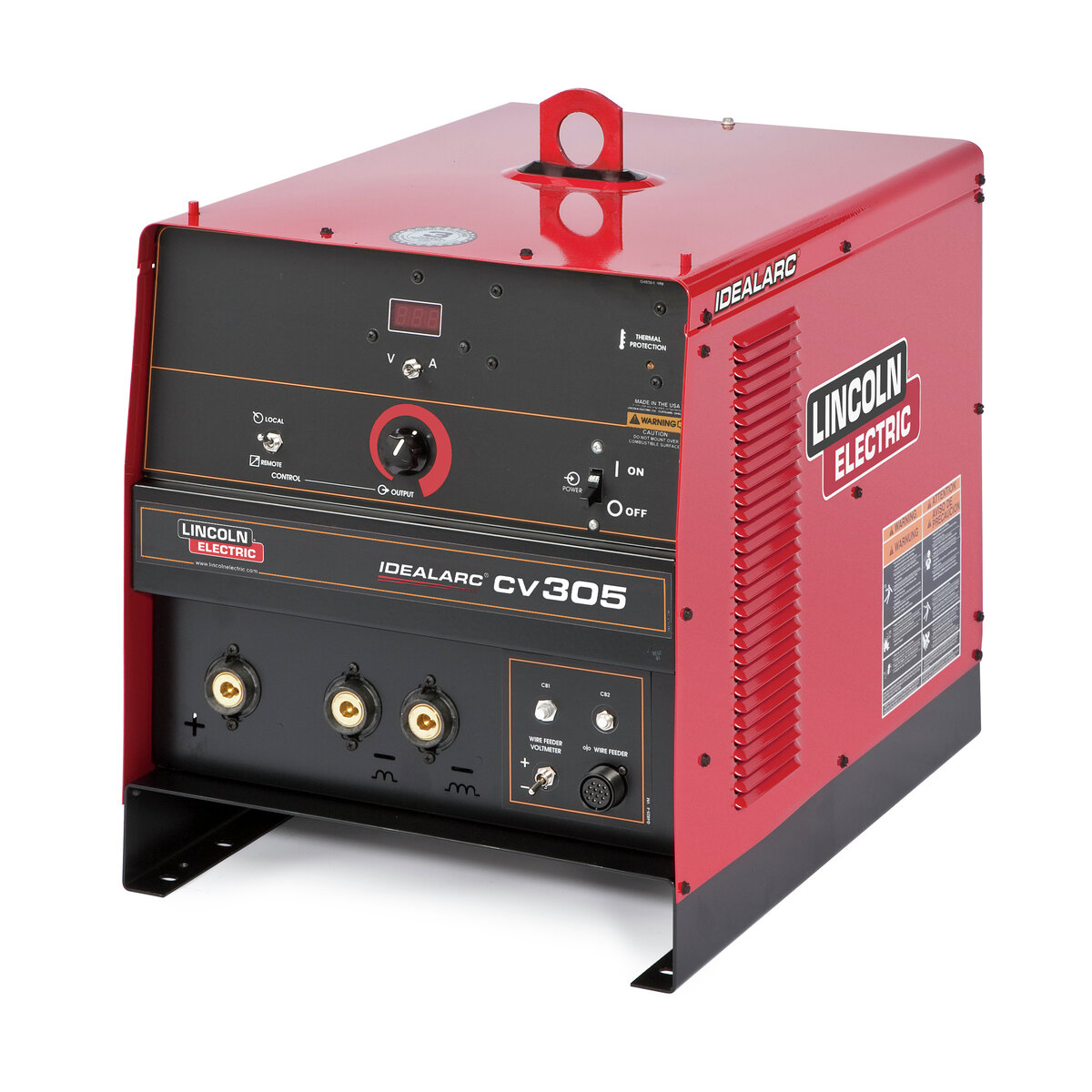

K2400-2 - Lincoln Idealarc CV305 3-Phase MIG Power Source

Industrial Reliability Meets Precision Control

The Lincoln Electric Idealarc CV305 (K2400-2) is a constant voltage DC power source designed specifically for heavy-duty industrial environments. Engineered to support GMAW (MIG) and FCAW (Flux-Cored) welding processes, this machine delivers a rated output of 315 amps at 32.6 volts with a 100% duty cycle. This continuous operation capability makes it an exceptional choice for production lines and fabrication shops where downtime is not an option. The unit operates on 3-phase input power (230/460/575V), ensuring stable and efficient energy consumption for high-demand applications.

Optimized Arc Characteristics

One of the defining technical features of the CV305 is its dual output connector system. Unlike standard welders that rely solely on electronic inductance control, the CV305 provides two distinct physical output terminals. The Low Inductance connection is optimized for short-arc welding, providing the fast response needed for crisp arc starts and stability on thinner materials. The High Inductance connection is tailored for spray transfer and globular transfer modes, smoothing out the arc for heavy deposition rates and deeper penetration. This hardware-level optimization ensures superior weld quality across a broad range of applications.

Advanced Monitoring and Durability

Precision is critical in industrial welding, and the CV305 addresses this with a standard digital ammeter and voltmeter. These bright, easy-to-read displays allow operators to preset and monitor voltage and amperage with accuracy, ensuring adherence to strict Welding Procedure Specifications (WPS). Internally, the machine is built to withstand harsh shop conditions. The transformer and power rectifier are environmentally protected, sealed against dust, dirt, and moisture. Lincoln Electric backs the ruggedness of their rectifier with an extended seven-year warranty, highlighting the component's reliability.

Integration and Flexibility

The CV305 is designed to integrate seamlessly into existing shop setups. It features a compact footprint for its class, allowing units to be stacked to save floor space. The front panel utilizes Twist Mate® connectors for rapid and secure cable changes. Additionally, the unit is equipped with line voltage compensation, which automatically adjusts for input power fluctuations, maintaining a consistent welding output even when the shop's power grid is under load. With a wide output range of 50-400 amps, the CV305 is a versatile powerhouse for general fabrication, structural steel, and heavy equipment manufacturing.
