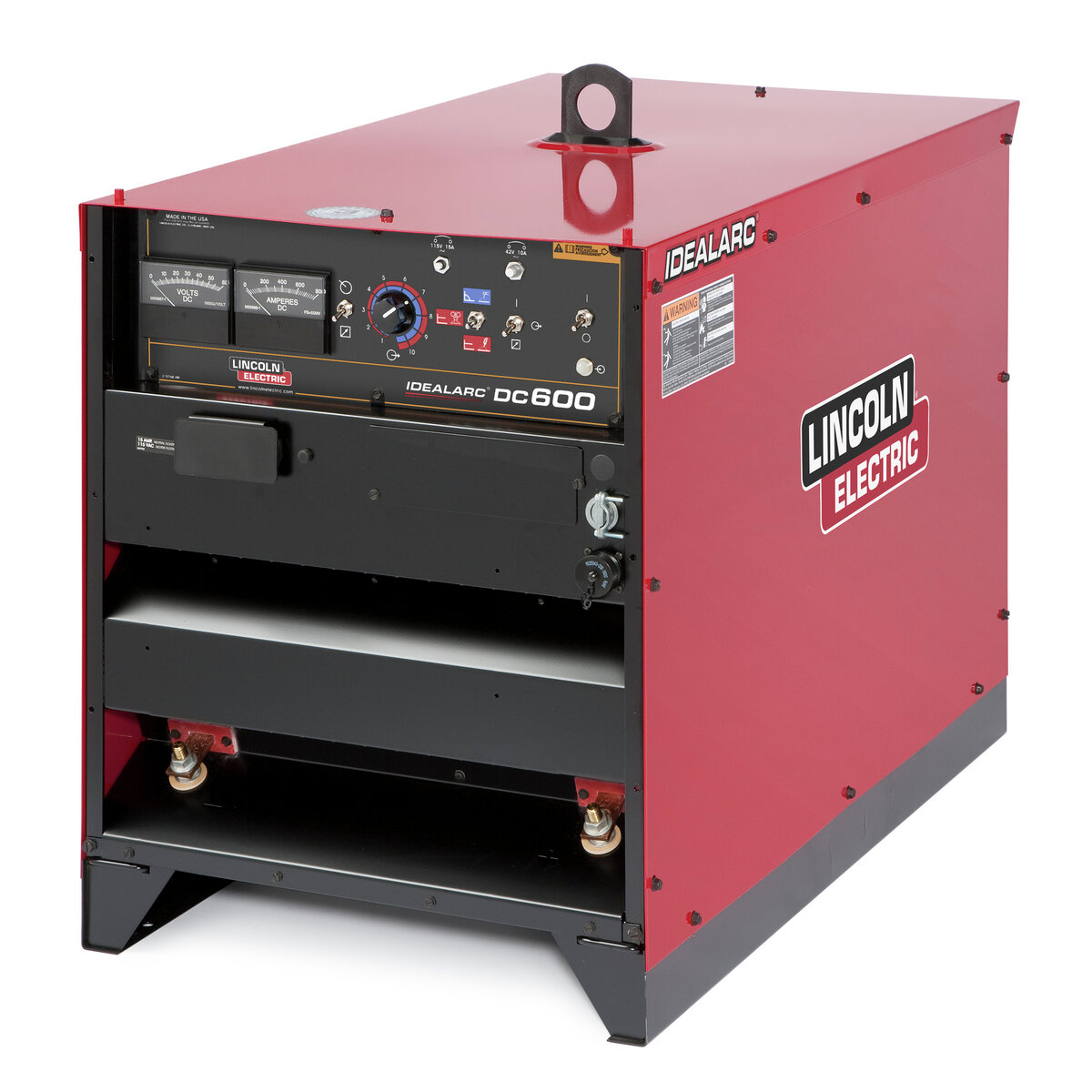

K1288-17 - Lincoln Idealarc DC600 Industrial Multi-Process Welder

Industrial-Grade Multi-Process Power Source

The Lincoln Electric Idealarc DC600 (K1288-17) stands as a benchmark for industrial DC multi-process welding. Engineered for the most demanding shop environments, this power source utilizes traditional SCR rectifier technology, renowned for its durability and ability to produce high-quality, consistent arcs. The machine is rated for a 100% duty cycle at 600 amps and 44 volts, ensuring it can handle continuous operation in heavy fabrication, shipbuilding, and structural steel applications without overheating or requiring cool-down periods.

Versatile Process Capabilities

Designed to be a comprehensive solution for industrial welding, the DC600 offers exceptional versatility. It features a mode switch that allows operators to select the desired output characteristics for a wide range of processes. It supports Constant Voltage (CV) for MIG and Flux-Cored welding, and Constant Current (CC) for Stick, TIG, and Gouging applications. Additionally, it is a capable power source for Submerged Arc Welding (SAW). The unit provides a broad output range, delivering between 70 and 780 amps in CV mode and 90 to 780 amps in CC mode, accommodating everything from fine control to high-deposition heavy plate welding.

Rugged Construction and Protection

The physical design of the Idealarc DC600 prioritizes longevity in harsh environments. The internal components, including windings and rectifiers, are protected against moisture and corrosive elements common in industrial settings. The exterior features a flat-top case with a small footprint, which allows the units to be stacked up to three high, maximizing valuable floor space. A standard 115V, 15-amp duplex auxiliary power receptacle is integrated into the front panel, providing convenient power for grinders, lights, and other shop tools directly at the workstation.

Precise Control and Monitoring

Operators benefit from full-range output voltage control, enabling precise fine-tuning of the arc for optimal weld bead appearance and penetration. The front panel includes standard analog ammeters and voltmeters, allowing for immediate visual verification of welding parameters. The machine's simple, robust controls reduce setup time and minimize the likelihood of electronic failure, making it a reliable choice for high-volume production environments.
