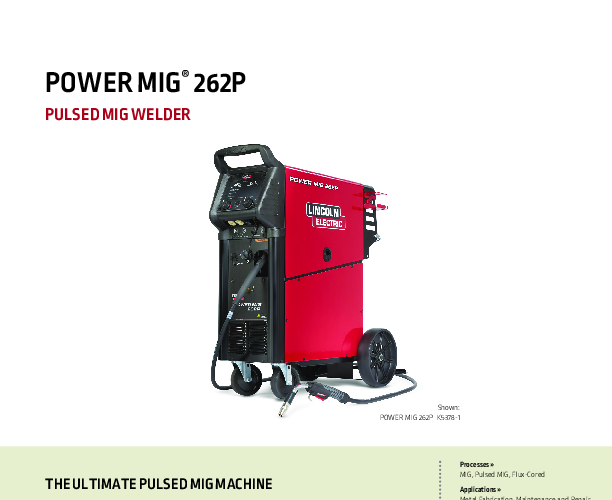

The Lincoln Electric POWER MIG® 262P (K5378-1) is a dedicated Pulsed MIG welding platform designed to bring industrial-grade arc performance to maintenance, repair, and light fabrication shops. Unlike standard CV MIG machines, the 262P utilizes advanced inverter technology to provide Pulsed MIG capabilities, significantly improving weld quality on aluminum, stainless steel, and mild steel. The "P" designation signifies its specialized Pulse modes, which help control heat input, reduce spatter, and enable out-of-position welding without the need for a complex slag system.
Central to the machine's operation is a 7-inch color LCD display that revolutionizes the operator experience. It features Lincoln's ArcFX® technology, which provides immediate visual feedback on how adjustments to Wire Feed Speed and Voltage will affect the weld bead profile. This graphical representation aids in rapid setup and fine-tuning. Additionally, the Ready.Set.Weld® system removes the guesswork from process selection; operators simply input the material type, wire diameter, and plate thickness, and the machine automatically configures the optimal parameters.
With a maximum output of 300 Amps and a rated output of 230A at 60% duty cycle, the POWER MIG 262P is built for sustained use in demanding environments. It offers exceptional versatility with its multi-voltage input capability, accepting 208, 230, 460, or 575 Volts (single phase), making it adaptable to virtually any shop power supply. The unit is specifically optimized for aluminum welding, featuring dedicated pulse modes for 4XXX and 5XXX series alloys, and supports various feeding methods including push guns, spool guns, and push-pull systems.
The 262P is constructed with the rugged MAXTRAC® wire drive system, ensuring precise and consistent wire feeding which is critical for pulsed applications. The machine also features a tilting gas bottle tray for safe cylinder loading and a top-mounted storage compartment for consumables. Whether for vocational education, automotive restoration, or precision fabrication, the POWER MIG 262P delivers a comprehensive solution for modern wire welding challenges.
| Additional Information |
|---|
| Brand:Lincoln Electric |
| Amperage:300 |
| Voltage:208/230/460/575 V |
| Weld Process:MIG (GMAW) |
| Duty Cycle:60% |
| Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Input Voltage:208V, 230V, 460V, 575V, Single Phase |
| Output Range:5-300 A |
| Rated Output:230A/26.5V/60% |
| Dimensions:37.5 in x 18 in x 37.5 in |
| Weight:250 lbs |
| Warranty:3 Years |
| Wire Drive:MAXTRAC Industrial Wire Drive |
| Packaging Description:1 0f each |
