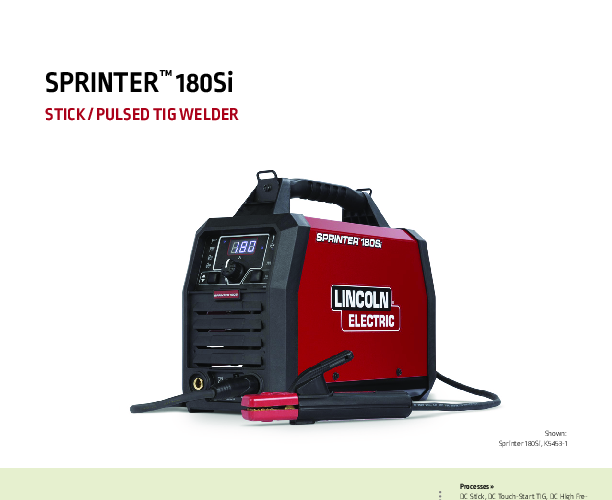

K5453-1 - Lincoln Electric Sprinter 180Si Dual-Voltage Stick/TIG Welder

Technical Overview of the Lincoln Sprinter 180Si

The Lincoln Electric Sprinter 180Si (K5453-1) represents a significant advancement in compact inverter technology, engineered to bridge the gap between lightweight portability and industrial-grade performance. Designed as a multi-process power source, this unit prioritizes Stick (SMAW) and DC TIG (GTAW) applications, offering a robust 180-amp output for Stick and up to 200 amps for TIG welding when operating on 230V input power. The machine features an auto-sensing dual-voltage input (120V/230V single phase), allowing for seamless integration into various power environments without the need for manual rewiring.

Technically, the Sprinter 180Si distinguishes itself with advanced arc control algorithms. It provides two distinct Stick modes: a 'Crisp' mode optimized for cellulosic electrodes like E6010 and E6011, ensuring deep penetration and arc stability, and a 'Soft' mode tailored for low-hydrogen electrodes such as E7018, which minimizes spatter and provides a fluid puddle. For TIG applications, the machine is equipped with both High-Frequency (HF) and Lift-Arc starting methods, accommodating environments where HF interference might be a concern. Furthermore, the integrated Pulsed TIG function offers a frequency range of 0.1 to 100 pulses per second (PPS), enabling precise heat input management critical for welding thin gauge materials and stainless steel, thereby reducing distortion and burn-through.

The unit's internal architecture supports a high Open Circuit Voltage (Peak OCV of 110V), which significantly aids in arc initiation and stability, particularly with difficult-to-start electrodes. The user interface is streamlined with a digital display for precise amperage setting, and the machine supports remote amperage control via optional foot pedals or hand amptrols. With a duty cycle of 25% at maximum output on 230V, the Sprinter 180Si is capable of sustained operation in maintenance and light fabrication settings. The IP21S rating ensures protection against vertical drops of water and solid objects larger than 12mm, suitable for standard workshop and controlled field environments.
