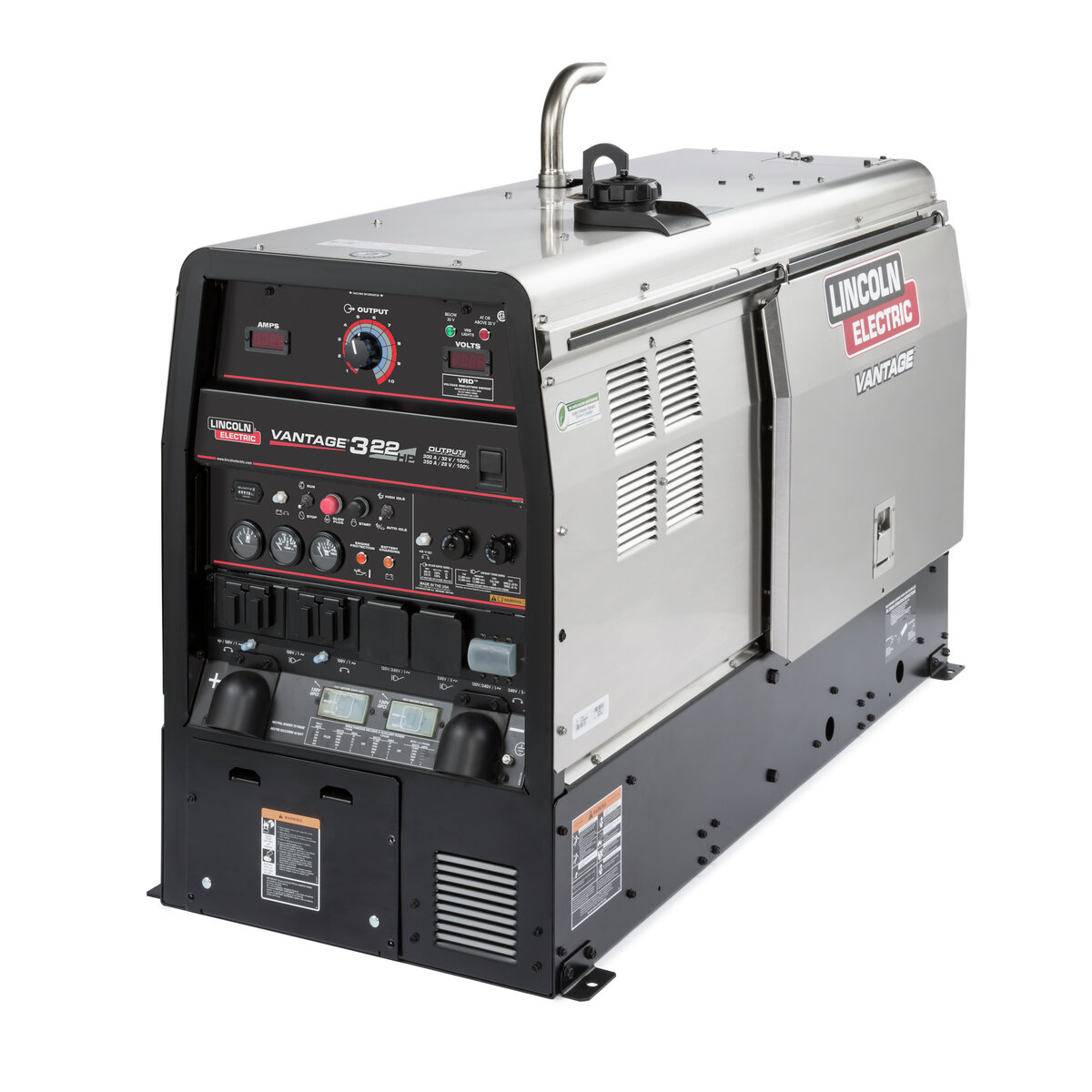

K2409-5-RP2 - Lincoln Vantage 322 Kubota Diesel Welder with Trailer

Industrial Power and Mobility

The Lincoln Electric Vantage 322 (Kubota) Ready-Pak 2 is the ultimate solution for construction teams, pipe rig owners, and rental fleets requiring a robust, mobile welding station. This package (K2409-5-RP2) combines the field-proven Vantage 322 diesel engine-driven welder with a fully assembled medium-duty trailer, allowing you to tow the unit directly to the job site and begin work immediately. At its core is a 22 HP Kubota V1505 naturally aspirated diesel engine, renowned for its reliability, smooth operation, and compliance with EPA Tier 4 Final emissions standards.

Engineered for versatility, the Vantage 322 delivers up to 400 amps of DC welding output, making it capable of handling a vast array of processes including Stick, Downhill Pipe, Touch Start DC TIG, MIG, Flux-Cored, and Carbon Arc Gouging (up to 5/16-inch carbons). Lincoln's patented Chopper Technology ensures a superior arc with minimal spatter and excellent bead control, even in demanding conditions. The machine is IEC rated at 300 amps at 100% duty cycle, ensuring it can withstand continuous heavy-duty use without overheating or faltering.

Beyond welding, this unit serves as a powerhouse for your auxiliary equipment. It provides 11 kW of continuous three-phase power (240V) and 10 kW of continuous single-phase power (120/240V). This capacity allows operators to run plasma cutters, pumps, grinders, and lights simultaneously, eliminating the need for separate generators. The unit is built tough with stainless steel panels to resist corrosion and a lockable sliding door for easy engine access. With a large 20-gallon fuel tank, the Vantage 322 keeps your operation running longer between fill-ups, maximizing uptime and productivity.
