300977 - Miller SA-807 Replacement Arm for FILTAIR MWX Series

High-Performance Source Capture for Industrial Environments

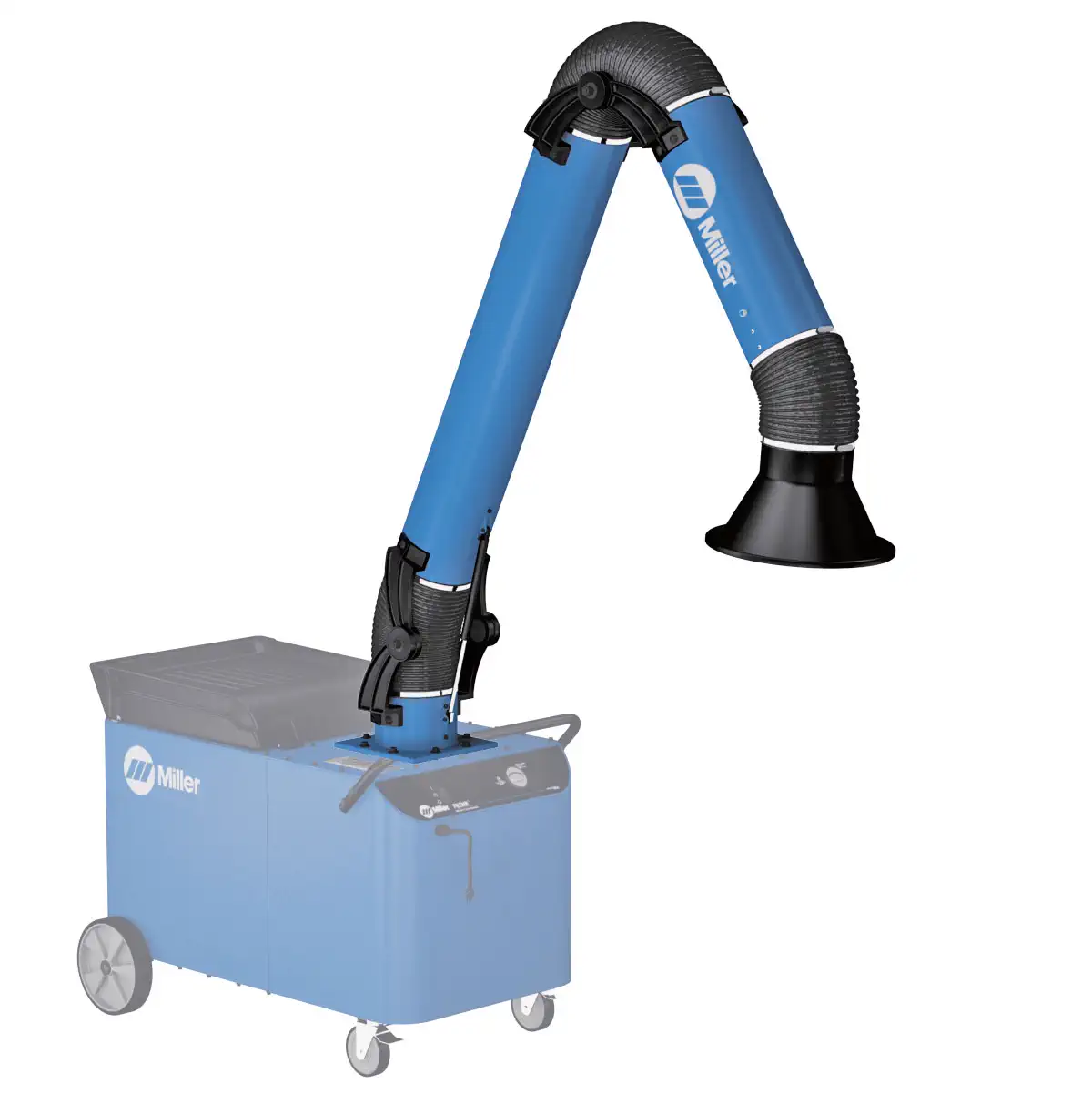

The Miller 300977 FILTAIR 8 in x 7 ft Fume Extraction Arm (SA-807) is a premium component designed to enhance the functionality of Miller's mobile fume extraction systems. Engineered specifically for the FILTAIR MWX-S (Self-Cleaning) and MWX-D (Disposable Filter) units, this arm represents the critical interface between the welding arc and the filtration unit. In industrial hygiene, source capture is widely recognized as the most effective method for controlling welding fumes, including hazardous particulates like hexavalent chromium and manganese. The SA-807 is built to maximize this efficiency through its generous dimensions and robust engineering.

One of the defining technical features of the SA-807 is its 8-inch diameter. While many standard extraction arms utilize a 6-inch tube, the increased diameter of this Miller model significantly reduces static pressure drop across the arm. This allows the connected blower to operate more efficiently, delivering higher CFM (Cubic Feet per Minute) at the hood. The larger diameter also creates a wider capture zone, meaning the arm does not need to be repositioned as frequently as smaller counterparts to maintain effective suction. This is particularly advantageous in high-production environments where welder uptime is a key performance indicator.

The arm boasts a 7-foot reach, providing a substantial working envelope for the operator. This length is ideal for mobile units, allowing the base machine to remain stationary while the welder moves around a workpiece or fixture. The arm is constructed with external adjustments, which keeps the interior of the tube smooth and free of obstructions that could cause turbulence or accumulate particulate buildup. This design consideration not only improves airflow characteristics but also simplifies maintenance and cleaning. Delivered pre-assembled, the SA-807 minimizes installation complexity, allowing facilities to get their safety equipment up and running with minimal labor overhead. It is the definitive solution for maintaining air quality standards when using Miller MWX mobile extractors.
