907866 - Miller Big Blue 450 Duo CST Diesel Welder Generator

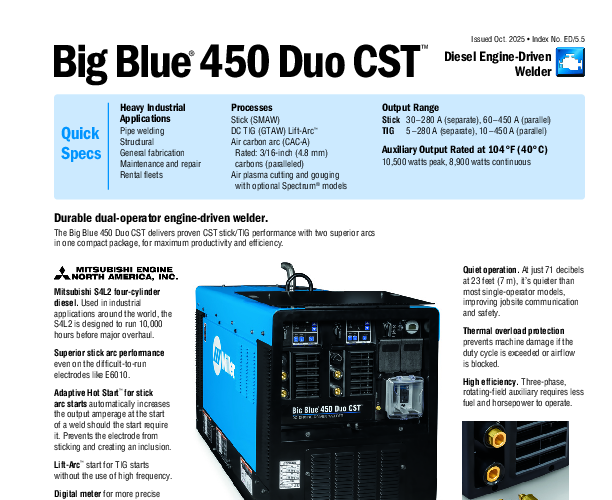

Technical Overview of the Miller Big Blue 450 Duo CST

The Miller Big Blue 450 Duo CST (907866) is a high-performance diesel engine-driven welder designed for heavy industrial applications requiring multi-operator efficiency. Powered by a robust Mitsubishi S4L2 four-cylinder liquid-cooled diesel engine, this unit delivers 24.7 HP at 1800 RPM and is fully compliant with Tier 4 Final emission standards. The engine is engineered for longevity, rated for 10,000 hours of operation before requiring a major overhaul, ensuring long-term reliability in demanding environments.

The defining feature of the Duo CST is its dual-operator capability. It houses two separate inverter-based power sources within a single chassis, allowing two operators to weld simultaneously without arc interaction. In dual mode, the machine provides up to 200 Amps per operator at 100% duty cycle. For single-operator tasks requiring higher amperage, the outputs can be paralleled to deliver a robust 400 Amps at 100% duty cycle. This flexibility makes it an ideal solution for structural steel, pipeline, and maintenance applications where workforce scalability is critical.

The unit supports Stick (SMAW), DC TIG (GTAW), and Air Carbon Arc Gouging (CAC-A) processes. It features Miller's Adaptive Hot Start™ technology, which automatically increases output amperage at the start of a weld to prevent electrode sticking, particularly useful for difficult-to-run electrodes like E6010. For TIG welding, the Lift-Arc™ start provides contamination-free arc initiation without the need for high frequency. Additionally, the machine serves as a powerful generator, offering 10,500 watts of peak single-phase power (4,000 watts continuous) to run jobsite tools, lighting, and accessories.

Operational efficiency is further enhanced by the machine's low noise profile, operating at just 72.2 dB at full load, which improves jobsite communication and safety. The 13-gallon fuel tank provides approximately 13.5 hours of runtime at 50% load, minimizing downtime for refueling. A standard Vandalism Lockout Kit protects the front control panel and ignition switch, securing the asset on unattended sites.
