907816002 - Miller Dynasty 210 AC/DC TIGRunner Package with Coolmate 1.3

Advanced Precision with the Miller Dynasty 210 TIGRunner

The Miller Dynasty 210 TIGRunner (907816002) represents the pinnacle of AC/DC TIG welding technology packaged in a mobile, water-cooled configuration. Designed for industrial applications requiring exacting standards, this system combines the Dynasty 210 power source with the Coolmate™ 1.3 water cooler and the Small Runner™ cart. This integration provides a seamless setup for fabrication environments where mobility and thermal management are critical. The unit features Miller's proprietary Auto-Line™ technology, allowing for automatic connection to any input voltage ranging from 120 to 480 V, single- or three-phase, without the need for manual linking mechanisms. This ensures consistent performance regardless of power fluctuations or dirty power sources often found on job sites.

At the core of the Dynasty 210 is an advanced inverter power supply capable of producing AC/DC TIG, Pulsed TIG, and Stick welds with exceptional arc stability. The interface is designed for both ease of use and deep technical customization. Operators can utilize the Pro-Set™ feature to instantly access professional-grade settings for Balance, Frequency, Pulse, and DIG parameters, eliminating setup guesswork. For advanced users, the machine offers full control over AC waveforms (Square, Sine, Triangular) and wide frequency ranges (20-400 Hz), allowing for precise manipulation of the arc cone and heat input, which is essential for critical aluminum and exotic metal welding.

The TIGRunner package is engineered for longevity and reliability. It includes the Cooler Power Supply (CPS), a dedicated 120-volt receptacle integrated into the power source that powers the Coolmate 1.3. This synchronization ensures the cooler is active whenever the welder is powered, preventing torch failure due to overheating. Additionally, the Cooler-On-Demand™ and Fan-On-Demand™ systems operate cooling components only when necessary, significantly reducing noise, energy consumption, and the intake of airborne contaminants into the machine's internal components.

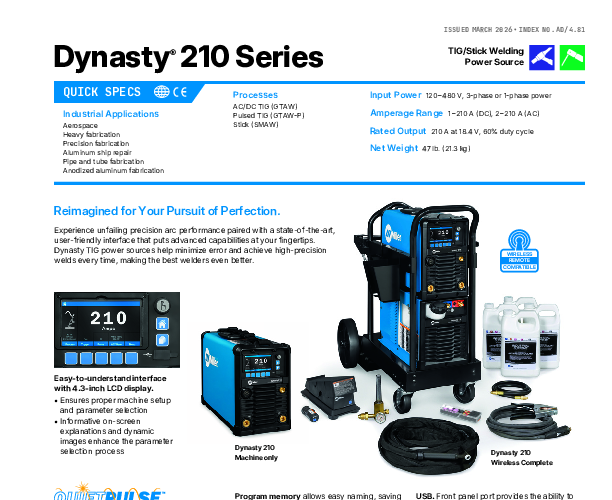

Key Technical Specifications:

• Input Power: 120–480 V, 1-Phase or 3-Phase Auto-Line™
• Amperage Range: 1 – 210 A (DC), 2 – 210 A (AC)
• Frequency Control: 20 – 400 Hz
• Pulse Capability: 0.1 – 500 PPS
• Material Thickness: Aluminum 0.012” – 1/4”; Steel 0.002” – 1/4”
