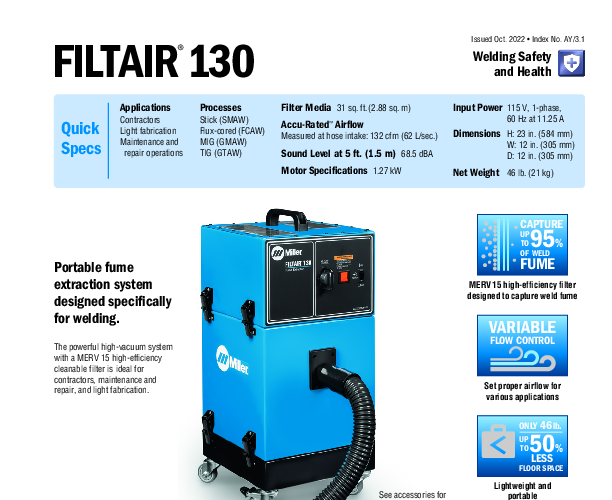

The Miller Filtair 130 (300595) is a premier portable fume extraction solution designed specifically for contractors, maintenance and repair operations (MRO), and light fabrication environments. Engineered to address the challenges of intermittent welding in confined or changing workspaces, this unit combines a powerful high-vacuum system with a lightweight, vertical form factor. Weighing only 46 pounds (21 kg), the Filtair 130 can be easily maneuvered by a single operator or positioned within workbaskets, ensuring that fume capture is available exactly where it is needed most.
At the core of the Filtair 130 is Miller's proprietary FilTek XL filter technology. Unlike conventional depth-loading filters that trap particles inside the media—making them difficult to clean and prone to clogging—FilTek XL utilizes a surface-loading design. This allows the filter to capture up to 95% of weld fume particulate at the submicron level while remaining manually cleanable. Operators can simply use dry compressed air to clean the filter, extending its service life up to eight times longer than treated cellulose filters. This significantly reduces consumable costs and downtime associated with filter changes.
The unit is powered by a 1 HP motor delivering an Accu-Rated airflow of 132 CFM (62 L/sec). Despite its power, the Filtair 130 is engineered for quiet operation, producing only 68.5 dBA at 5 feet. This 70% reduction in noise compared to similar extractors facilitates better communication on the job site and creates a safer, less fatiguing work environment. The front control panel features a variable flow adjustment knob, allowing users to tailor the suction power to the specific application, whether using a funnel nozzle, slotted nozzle, or a fume extraction gun. A filter service indicator light automatically alerts the user when maintenance is required, ensuring optimal performance is maintained.
The 300595 package includes the extractor unit, a FilTek XL filter, an 8-foot collection hose, and a 20-foot power cord. The system is compatible with a variety of optional accessories, including magnetic nozzles and Bernard Clean Air Guns, making it a versatile addition to any professional welding fleet.
| Additional Information |
|---|
| Brand:Miller |
| Item:Fume Extractor |
| Voltage:115 V |
| Packaging Description:1 Per Ea |
| Input Power:115 VAC / 1-Phase / 60 Hz |
| Amperage Draw:11 A |
| Nominal Airflow:132 CFM |
| Sound Level:68.5 dBA at 5 ft (1.5 m) |
| Motor Power:1 HP |
| Filter Type:FilTek XL Surface-Loading |
| Filter Media Area:16 sq ft (1.49 sq m) |
| Dimensions:23 in H x 12 in W x 12 in D |
| Hose Length:8 ft |
| Power Cord Length:20 ft |
