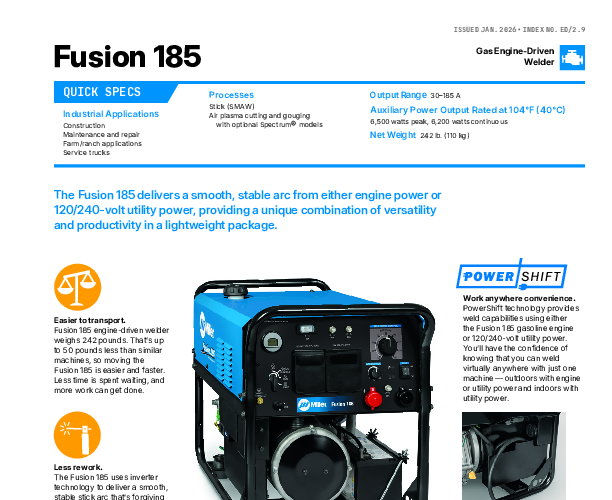

907781 - Miller Fusion 185 Welder/Generator with PowerShift Technology

Miller Fusion 185 Engine Drive Welder Overview

The Miller Fusion 185 (907781) represents a significant advancement in portable welding technology, integrating Miller's exclusive PowerShift technology. This hybrid capability allows the unit to operate as a traditional engine-driven welder using its onboard 13.4 HP Kohler gasoline engine or to be plugged into 120/240V utility power for indoor use. This dual-power functionality eliminates the need for multiple machines, providing a single solution for both field and shop environments. The unit utilizes inverter-based power conversion, ensuring a smooth, stable DC Stick (SMAW) arc that is highly forgiving of variations in arc length and travel speed, reducing the likelihood of weld defects and rework.

Technical Specifications and Performance

Engineered for industrial performance in a compact footprint, the Fusion 185 delivers a rated output of 185 Amps at 20% duty cycle. As a generator, it provides a robust 6,500 watts of peak power and 6,200 watts of continuous power, sufficient to run job site tools such as grinders, drills, and lights. The machine features the Multi-Voltage Plug (MVP) system, allowing for quick, tool-less adaptation between 120V and 240V input sources when not running on the engine. Weighing only 242 pounds, the chassis is constructed to be rugged yet portable, featuring a lift eye and compatibility with optional running gear. The Kohler CH440 engine includes both electric start and a recoil backup, ensuring operational readiness in all weather conditions.

Operational Efficiency

The Fusion 185 is designed to maximize productivity. Its class-leading 6.25-gallon fuel tank extends operation times between refills, while the auto-idle feature reduces noise and fuel consumption when the arc is not active. The front panel provides intuitive controls, including a single-range amperage selector and a quick-reference parameter chart. By combining the mobility of an engine drive with the convenience of a plug-in machine, the Fusion 185 offers a versatile solution for maintenance, repair, and light construction applications.
