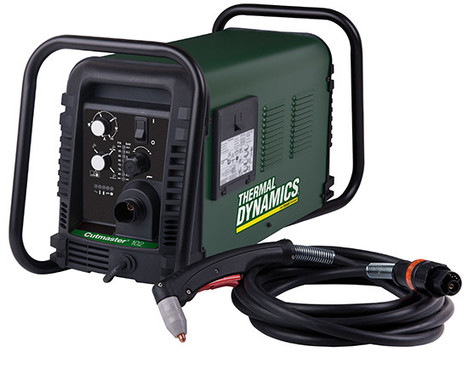

The Thermal Dynamics Cutmaster 102 is a high-performance manual air plasma system designed for heavy fabrication, manufacturing, and construction environments. Identified by SKU 1-1330-2, this specific configuration is optimized for 460V input power (1 or 3 phase) and comes equipped with a 20-foot SL100 hand torch. The system delivers a massive 100 Amps of cutting output, providing a recommended cut capacity of 1 inch (25 mm) and a maximum severance capacity of 1-3/4 inches (45 mm).
Engineered with the professional in mind, the Cutmaster 102 features the TRUE Cut Series philosophy. This ensures that the recommended cut capacity is the actual continuous production capacity of the machine, eliminating the need to oversize equipment for standard jobs. If the machine is rated for 1 inch, it will cut 1-inch plate all day long without duty cycle interruptions. The unit boasts a 60% duty cycle at full 100A output, and 100% duty cycle at 70A, making it a workhorse for continuous operations.
The unit is housed within the TRUE GUARD roll bar, a rugged external cage that provides exceptional protection for the front and rear panels while serving as a convenient carrying handle. Despite its industrial power, the machine weighs only 62 lbs (28.1 kg), making it significantly lighter than comparable 100A systems. The front panel features color-coded LEDs that indicate gas pressure status and setup errors, allowing for rapid troubleshooting and setup.
The included SL100 1Torch features the ATC (Advanced Torch Connector) quick disconnect system, allowing operators to easily switch between hand and machine torches or add lead extensions. The torch is designed for ergonomics and durability, with a 75-degree head that reduces wrist strain during long cuts. The system also includes an Auto Pilot Restart feature, which instantly reignites the pilot arc when cutting expanded metals or grating, ensuring a continuous and smooth cut without manual re-triggering.
| Additional Information |
|---|
| Brand:Thermal Dynamics |
| Amperage:100 |
| Voltage:460 V |
| Duty Cycle:60% |
| Weld Process:Plasma Cutting |
| Input Voltage:460V 1/3 Phase 50/60 Hz |
| Torch Length:20 ft (6.1m) |
| Pilot Arc:Auto Pilot Restart |
| Weight:62 lbs (28.1 kg) |
| Dimensions:15" x 12" x 30" |
| Air Requirements:70 psi (4.8 bar) @ 7.5 cfm (212 l/m) |
| Packaging Description:pack of 1 |
