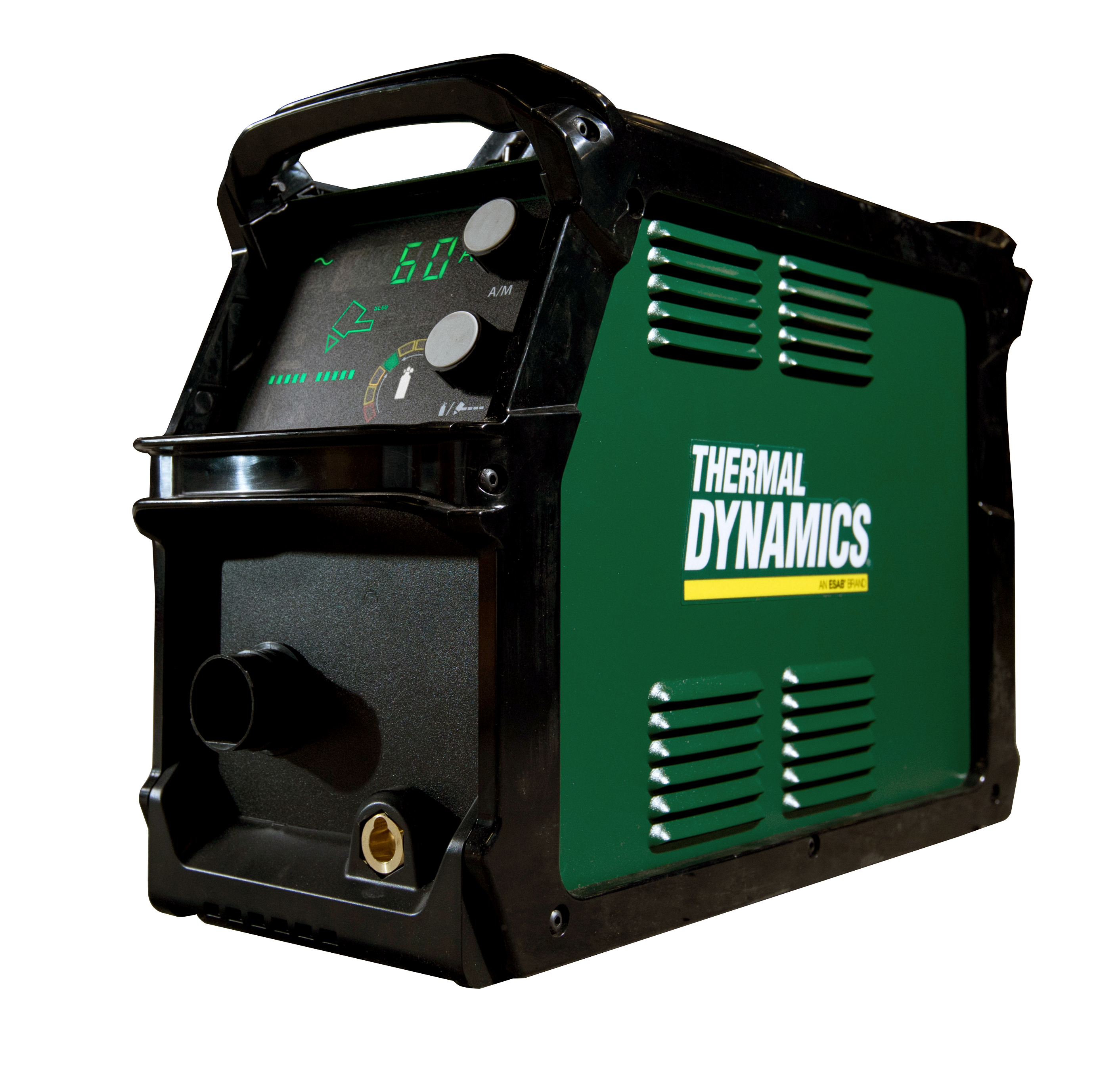

The Thermal Dynamics Cutmaster 82 is a robust plasma cutting system engineered for heavy-duty industrial environments requiring 460V 3-phase power. Part of the renowned TRUE Series, this machine redefines capacity ratings by ensuring that its "recommended" cut capacity is its true, continuous operational capacity. With a recommended cut of 3/4 inch (19mm) and a maximum severance capability of 1-1/2 inches (38mm), the Cutmaster 82 eliminates the need for fabricators to purchase oversized machines just to ensure reliability at standard thicknesses.

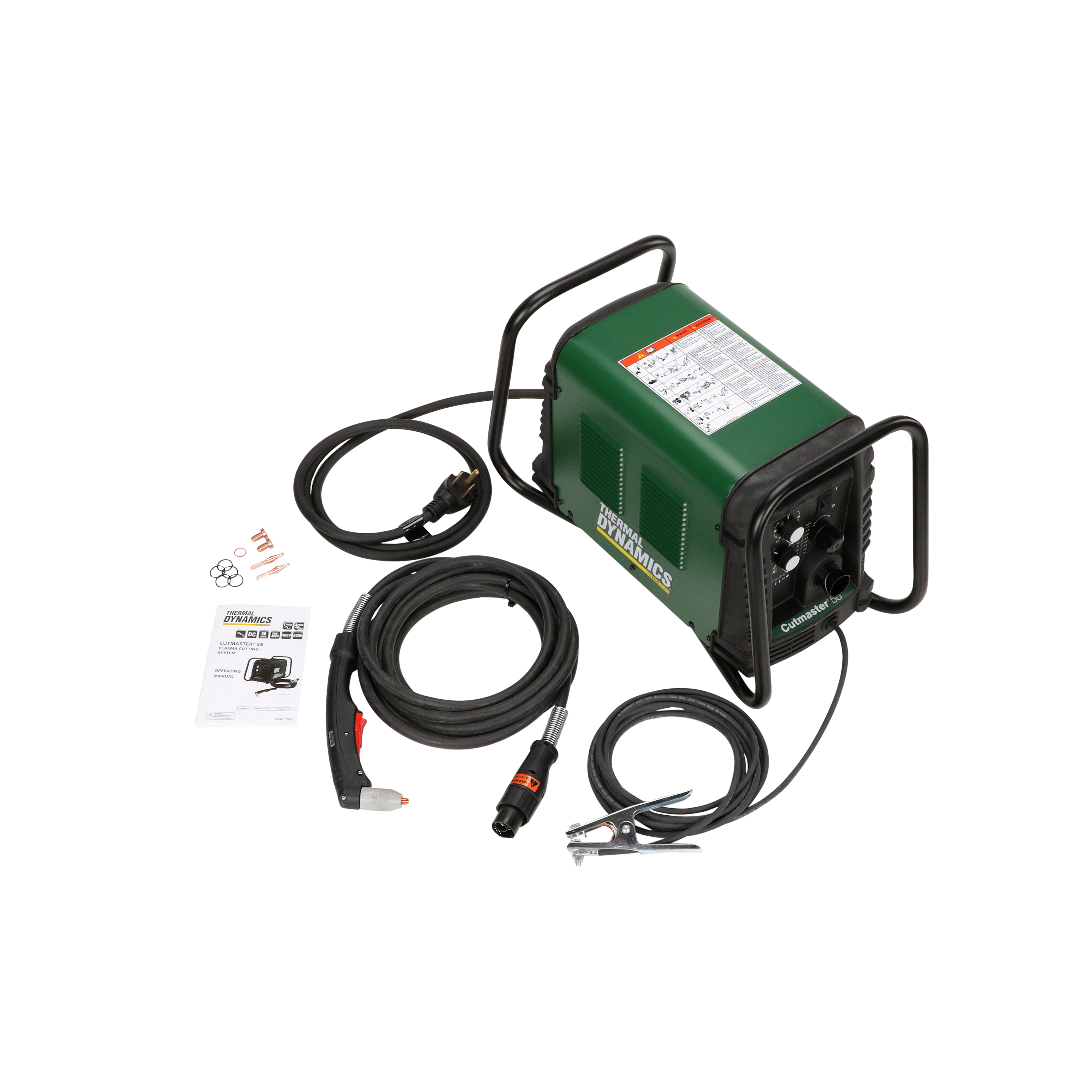

This package (SKU 1-1131-2) includes the industry-leading SL60 1Torch with a 75-degree head and an extended 50-foot lead. The 1Torch technology features the ATC (Advanced Torch Connector) quick disconnect system, allowing operators to switch between hand and mechanized torches in seconds or add lead extensions with ease. The 50-foot reach is particularly advantageous in large-scale fabrication shops, shipyards, and construction sites where moving the power supply is impractical. The torch is designed for comfort and precision, utilizing a "drag tip" technology at 60 amps and below, and standoff cutting at higher amperages.
Despite its high output of 82 amps, the unit remains remarkably portable, weighing only 43 lbs (19.5 kg). It is protected by the True Guard roll bar, a tubular steel cage that shields the front and rear panels from impact damage while serving as convenient carrying handles. The front panel features color-coded LEDs that provide instant feedback on pressure status and setup errors, reducing downtime and simplifying troubleshooting. The Auto Pilot Restart feature is a critical addition for cutting expanded metal or grating, as it instantly reignites the pilot arc without requiring a trigger re-pull, ensuring smooth, uninterrupted operation.
Operating on a dedicated 460V input, this system delivers a rated output of 9kW. It is built to withstand the rigors of daily industrial use, backed by a 4-year warranty on the power supply and a 1-year warranty on the torch. Whether for structural steel, aluminum fabrication, or maintenance repair operations (MRO), the Cutmaster 82 provides clean, dross-free cuts with exceptional speed and consistency.
| Additional Information |
|---|
| Brand:Thermal Dynamics |
| Weld Process:Plasma Cutting |
| Voltage:460 V |
| Amperage:82 |
| Duty Cycle:40% |
| Torch Length:50 ft |
| Input Phase:3-Phase |
| Weight:43 lbs |
| Recommended Cut:3/4" |
| Torch Model:SL60 |
| Warranty:4 Years (Power Supply), 1 Year (Torch) |
| Packaging Description:pack of 1 |
